| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Current Rating | |
| For Use With | |
| Mounting Type | |
| Operating Temperature | |
| Termination Style | |
| Voltage Rating |

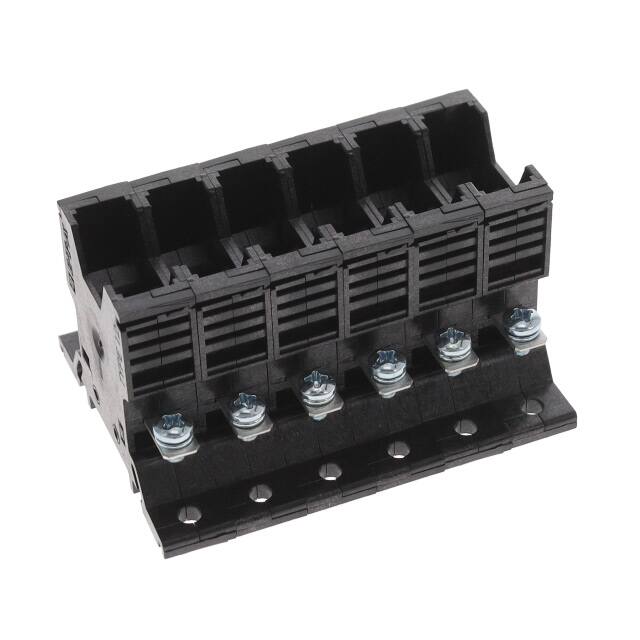

This E-T-A 12-J20-60 is a mounting socket accessory for thermal automotive circuit breakers, specifically designed for the 1170 Series.
It features blade terminals for plug-in mounting, facilitating easy integration into automotive fuse blocks. The socket is compatible with circuit breakers operating at DC voltages of 12V, 24V, and 48V, with a maximum voltage rating of 58VDC. It supports current ratings from 3A to 25A.
The socket is built to withstand typical automotive environmental conditions, including operating temperatures from -40°C to 85°C, vibration up to 10g, and shock up to 50g. It offers a degree of protection of IP40 for the operating area and IP00 for the terminal area.
This accessory is crucial for ensuring secure and reliable connections for E-T-A's 1170 Series thermal automotive circuit breakers in various vehicle and marine craft applications.
The socket supports DC voltages of 12V, 24V, and 48V.
The socket supports current ratings from 3A to 25A.
It uses plug-in mounting.
The operating temperature range is -40°C to 85°C.
The operating area has an ingress protection rating of IP40.
