| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Ambient Temperature | |
| For Use With | |
| Mounting Type | |
| Termination Style | |
| Voltage Rating |

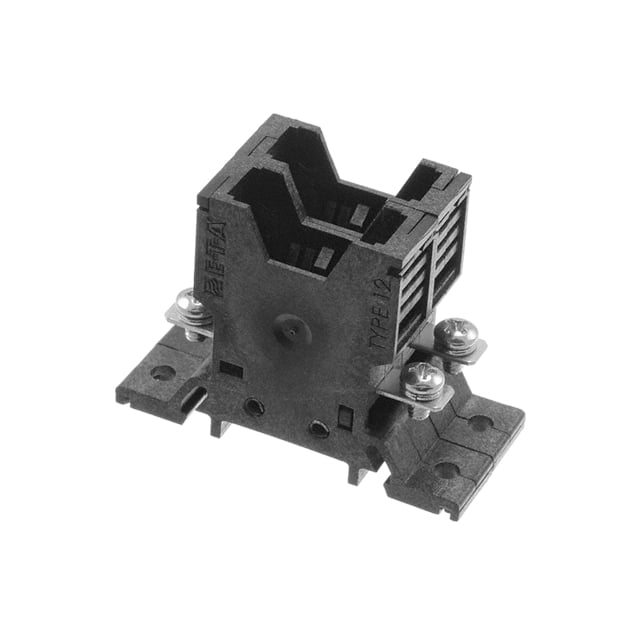

The E-T-A 12-J20-20 is a circuit breaker mounting socket, categorized under accessories for circuit protection. It is specifically designed for use with the E-T-A 1170 Series thermal automotive circuit breakers.
This socket features plug-in mounting and blade terminals, facilitating straightforward installation in automotive and marine applications. It supports a voltage rating of 12 VDC, 24 VDC, and 48 VDC, with a maximum operating voltage of 58 VDC. The current rating range for compatible circuit breakers is 3 A to 25 A.
The socket is built to withstand environmental conditions, including vibration resistance up to 10 g and shock resistance of 50 g. It also offers corrosion and humidity resistance, making it suitable for demanding environments. The ingress protection rating for the operating area is IP40.
This accessory is essential for proper installation and connection of E-T-A 1170 Series circuit breakers in extra-low voltage wiring systems found in vehicles and marine craft.
The socket supports operating voltages of 12 VDC, 24 VDC, and 48 VDC, with a maximum voltage of 58 VDC.
The socket uses plug-in mounting with blade terminals.
The operating temperature range is -40°C to 85°C.
The socket supports current ratings from 3 A to 25 A.
Typical life is 6000 operations at 1xIN at 24 VDC, 3000 at 2xIN, and 500 at 1xIN at 48 VDC.
The interrupting capacity is at least 2000 A at 24 VDC.
The degree of protection is IP40 for the operating area and IP00 for the terminal area.
