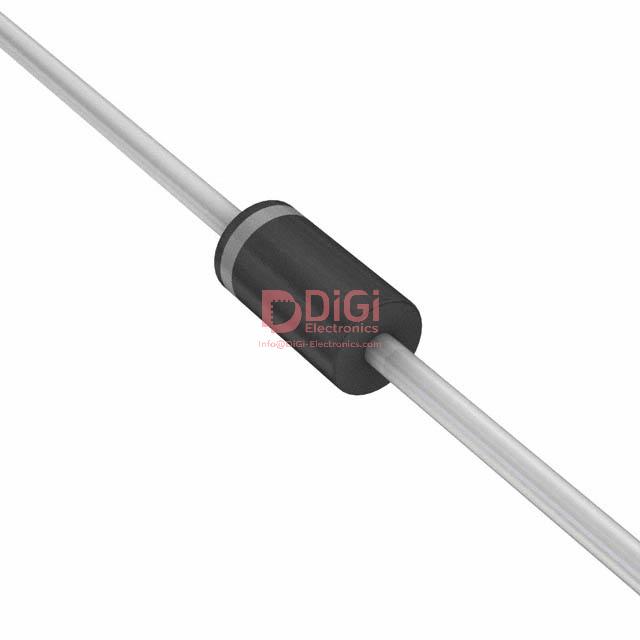

11DQ03TR The Vishay VS-11DQ03TR is a Schottky diode designed for general rectification applications. It features a 30V reverse voltage and 1.1A average forward current.
Mfr Part #:

11DQ03TR

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay VS-11DQ03TR is a Schottky diode designed for general rectification applications. It features a 30V reverse voltage and 1.1A average forward current.
✓ Total Stock: 4,550 pcs
$ Price Range: $0.99

11DQ03TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
4,550 pcs
On Request
4550 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

11DQ03TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Current
Forward Voltage
Lead Style
Mounting Type
Operating Temperature
Reverse Voltage
SVHC Present
Tape & Reel
View Similar Products (0)

11DQ03TR Description

Short technical summary and product information.

The Vishay VS-11DQ03TR is a Schottky diode with a maximum reverse voltage rating of 30V and an average forward current of 1.1A. It exhibits a low forward voltage of 550mV at 1A and a fast recovery time of less than 500ns.



This diode is housed in a through-hole DO-204AL (DO-41) axial package, making it suitable for various electronic circuit designs. The operating temperature range for the junction is from -40°C to 150°C.



Key electrical characteristics include a reverse leakage current of 1mA at 30V. The component is supplied in Tape & Reel packaging.

11DQ03TR Quick Information

Product Type: Schottky Diode
Series: 11DQ03
Canonical Name: Vishay General Semiconductor - Diodes Division VS-11DQ03TR Schottky Diode
Subcategory: Rectifier

11DQ03TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

11DQ03TR Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

11DQ03TR Features

  • 30V maximum reverse voltage rating.
  • 1.1A average forward current capacity.
  • Low 550mV forward voltage at 1A.
  • Fast recovery time under 500ns.
  • Through-hole DO-204AL axial package.

11DQ03TR Applications

  • General purpose rectification circuits.
  • Power supply voltage smoothing.
  • Reverse polarity protection.
  • Low voltage high frequency rectification.

11DQ03TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the 11DQ03TR?

30V.

What is the forward current rating?

1.1A average.

What is the forward voltage drop?

550mV at 1A.

What is the reverse recovery time?

≤500ns.

What package is the 11DQ03TR available in?

DO-204AL (DO-41) axial leaded package.

What is the operating temperature range?

-40°C to 150°C junction.

What is the reverse leakage current?

1mA at 30V.
