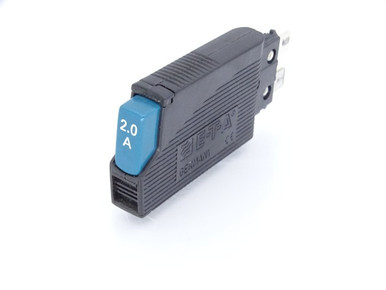

The E-T-A 1180-02-2A is a thermal circuit breaker in a compact design, suitable for AC and DC voltage applications. It replaces conventional fuses and offers increased system availability through its reset option. The device features reliable switching behavior, snap action, and positively trip-free mechanisms.
Key specifications include a current rating of 2A and a voltage rating of 250VAC (65VDC, or 72VDC for UL/UL Canada). It has a single pole and a push-push actuator type. The circuit breaker has a very small width of only 8.2 mm, making it space-saving.
Designed for easy mounting, it is suitable for standard terminal blocks and DIN rail mounting. The 1180 series meets the requirements of the EN 60934 (IEC 60934) circuit breaker standard. Typical applications include protection of loads in power distribution systems within control cabinets and process control.
This thermal circuit breaker operates within an ambient temperature range of -20°C to 60°C. It offers a typical life of 6,000 operations at 1x In (low-inductance) and 3,000 operations at 1x In (inductive).
The current rating is 2A.
The voltage rating is 250 VAC.
The operating temperature range is -20 to 60 °C.
It is a thermal circuit breaker.
It is designed for holder mounting.
