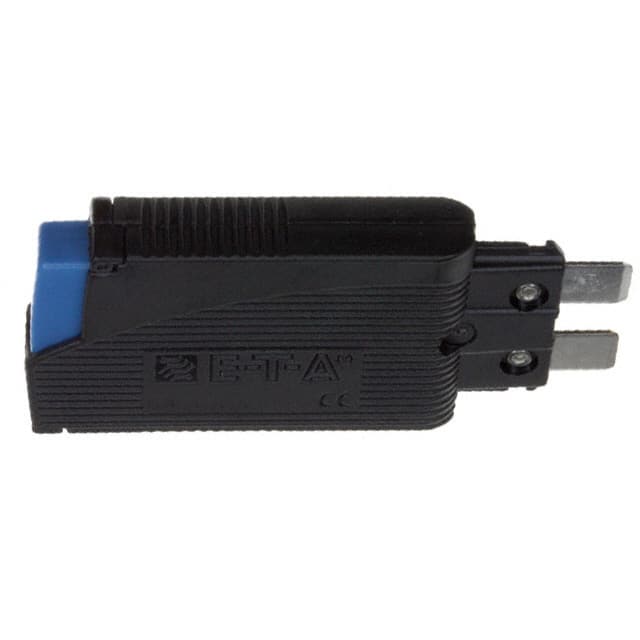

1180-01-0.25A The E-T-A 1180-01-0.25A is a compact thermal overcurrent circuit breaker designed for AC and DC applications. It features a 250mA current rating and a 250V AC voltage rating.
Mfr Part #:

1180-01-0.25A

Mfr Name: ETA
ETA
The E-T-A 1180-01-0.25A is a compact thermal overcurrent circuit breaker designed for AC and DC applications. It features a 250mA current rating and a 250V AC voltage rating.
Stock on Request

1180-01-0.25A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Ambient Temperature
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating
Width

1180-01-0.25A Description

Short technical summary and product information.

The E-T-A 1180-01-0.25A is a thermal overcurrent circuit breaker in a very compact design, measuring only 8.2mm in width. It is designed as a replacement for conventional fuses in equipment for both AC and DC voltage ranges, offering reliable switching behavior and a reset option to increase system availability.



This circuit breaker features a 250mA current rating and a voltage rating of 250V AC and 65V DC (72V DC for UL/UL Canada). It meets the requirements of the EN 60934 (IEC 60934) circuit breaker standard. The plug-in design is suitable for standard terminal blocks for DIN rail mounting, simplifying installation.



Typical applications include the protection of loads in power distribution systems within control cabinets and process control. The push-push button allows for direct switching off of the load for maintenance purposes without removing the device from the terminal block, preventing loss.



Key benefits include increased system availability through its reset function, space and weight savings due to its compact design, and reduced maintenance costs. Various accessories are available for easy wiring.

1180-01-0.25A Quick Information

Product Type: Circuit Breaker
Series: 1180
Canonical Name: E-T-A 1180-01-0.25A Thermal Overcurrent Circuit Breaker

1180-01-0.25A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1180-01-0.25A Features

  • Compact thermal overcurrent circuit breaker.
  • 250mA current rating for precise protection.
  • 250V AC and 65V DC voltage rating.
  • 8.2mm width saves valuable panel space.
  • Plug-in design for easy DIN rail mounting.

1180-01-0.25A Applications

  • Protects loads in power distribution.
  • Used in control cabinets.
  • Suitable for process control systems.
  • Replacement for conventional fuses.
  • AC and DC voltage applications.

1180-01-0.25A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the 1180-01-0.25A circuit breaker?

The circuit breaker is rated for 250V AC and 72V DC (UL/UL Canada) or 65V DC.

What is the current rating of this thermal circuit breaker?

The current rating is 250mA (0.25A).

What type of actuator does the 1180-01-0.25A use?

It uses a push-push actuator.

What is the operating temperature range?

The ambient temperature range is -20°C to +60°C (T 60).

What is the typical life expectancy of this breaker?

At 1x In (low-inductance), typical life is 6,000 operations; at 1x In (inductive), 3,000 operations; at 2x In (inductive), 500 operations.

What is the insulation coordination rated impulse withstand voltage?

The rated impulse withstand voltage is 2.5 kV.

How many poles does this circuit breaker have?

It is a single-pole (1 pole) circuit breaker.
