1170-21-4A The E-T-A 1170-21-4A is a single-pole thermal circuit breaker designed for extra low voltage wiring systems. It features a push-to-reset actuator and blade terminals for plug-in mounting.
Mfr Part #:

1170-21-4A

Mfr Name: ETA
ETA
The E-T-A 1170-21-4A is a single-pole thermal circuit breaker designed for extra low voltage wiring systems. It features a push-to-reset actuator and blade terminals for plug-in mounting.
Stock on Request

1170-21-4A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Ambient Temperature
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating

1170-21-4A Description

Short technical summary and product information.

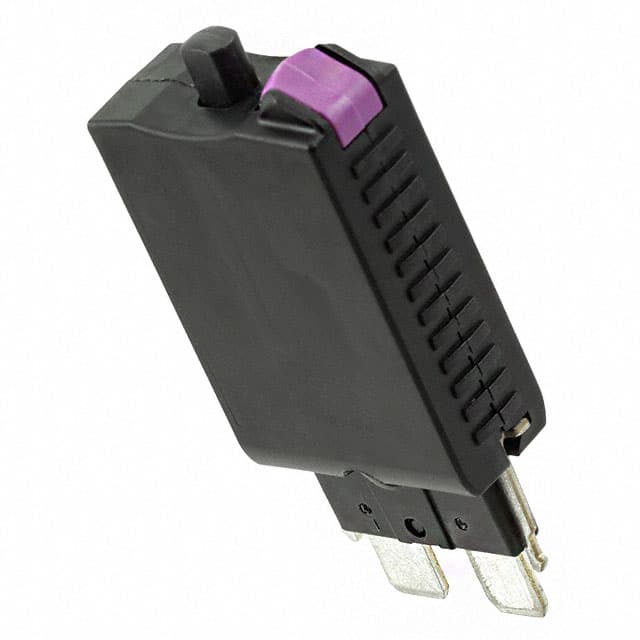

The E-T-A 1170-21-4A is a compact, single-pole thermal circuit breaker with a push-to-reset, tease-free, trip-free snap-action mechanism and a manual release. It is designed for extra low voltage wiring systems in vehicles and marine craft, offering full circuit breaker protection with low ownership costs.



This circuit breaker has a current rating of 4A and a voltage rating of 28VDC, with a maximum operating voltage of 58VDC. It is built to withstand harsh environmental conditions, featuring an operating temperature range of -40°C to 85°C, IP40 protection for the operating area, and resistance to vibration, shock, corrosion, and humidity.



The 1170-21-4A utilizes blade terminals for plug-in mounting into automotive fuse blocks, conforming to DIN 72581 part 3 standards. Its robust construction ensures reliable performance with a typical life of 6,000 operations at rated current and voltage. The breaker also offers a high interrupting capacity of 2000A.



Typical applications include extra low voltage wiring systems on all types of vehicles and marine craft. The version 1176 is specifically designed for the automotive industry, with current ratings corresponding to blade fuses.

1170-21-4A Quick Information

Product Type: Thermal Circuit Breaker
Canonical Name: E-T-A 1170-21-4A Thermal Circuit Breaker
Subcategory: Thermal

1170-21-4A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1170-21-4A Features

  • Compact single-pole thermal circuit breaker.
  • Push-to-reset, tease-free, trip-free mechanism.
  • Rated for 4A current and 28VDC voltage.
  • Operates in -40°C to 85°C ambient temperature.
  • IP40 protection for operating area.

1170-21-4A Applications

  • Ideal for vehicle wiring systems.
  • Suitable for marine craft electrical systems.
  • Used in extra low voltage applications.
  • Provides protection for automotive circuits.

1170-21-4A FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the E-T-A 1170-21-4A circuit breaker?

The current rating is 4A.

What is the operating voltage for the E-T-A 1170-21-4A circuit breaker?

The circuit breaker is rated for 28 VDC, with a maximum voltage of 58 VDC.

What type of actuator does the 1170-21-4A circuit breaker have?

It features a push-to-reset actuator.

What is the operating temperature range for this circuit breaker?

The ambient temperature range is -40°C to 85°C.

What is the degree of protection for the E-T-A 1170-21-4A?

The operating area has an IP40 degree of protection, and the terminal area has IP00.

What is the typical life of the 1170-21-4A circuit breaker?

It has a typical life of 6,000 operations at rated current (3-25A) and 24VDC.
