117-43-668-41-005000

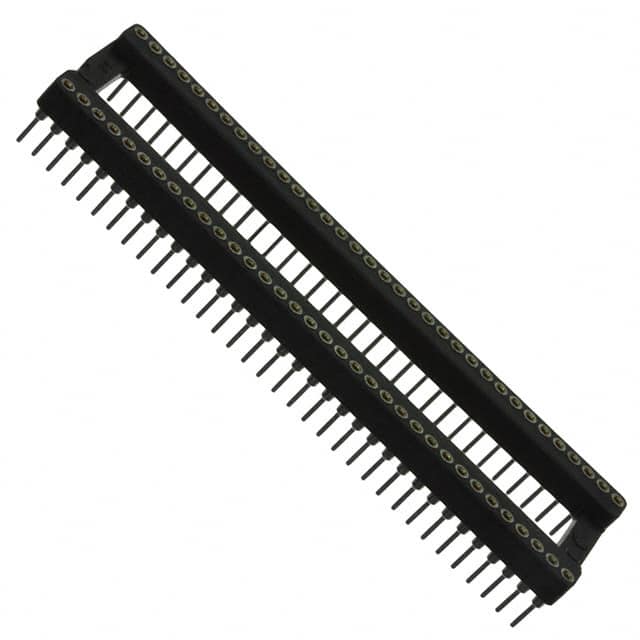

The Mill-Max Manufacturing 117-43-668-41-005000 is a 68-position dual in-line (DIP) socket designed for through hole mounting. It features a 0.6" (15.24mm) row spacing and a 0.070" (1.78mm) pitch, accommodating 2 rows of 34 pins. The socket uses an open frame design, allowing for improved airflow and easier cleaning. The contacts are made of beryllium copper with a tin finish, providing reliable electrical connections. The housing is constructed from polycyclohexylenedimethylene terephthalate (PCT) polyester, offering good mechanical and thermal stability. The operating temperature range is -55°C to 125°C, making it suitable for a wide variety of applications. This socket is ideal for use in prototyping, production, and testing of integrated circuits in DIP packages. Its robust construction and high pin count make it appropriate for complex ICs such as microcontrollers, memory devices, and other large-scale integration circuits. The solder termination ensures secure connections on printed circuit boards. Compliance with RoHS and REACH is indicated, though unverified. Overall, this socket provides a reliable interconnect solution for 68-pin DIP devices.
