| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| SVHC Present | |
| Voltage Rating |

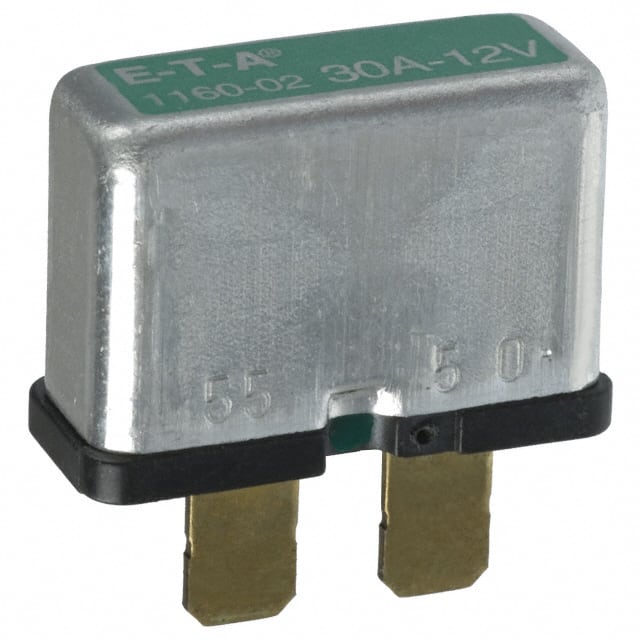

The E-T-A 1160-02-30A is a single-pole, thermal circuit breaker designed for automotive and marine extra-low voltage wiring systems. It operates at 12VDC and has a current rating of 30A.
This circuit breaker features a controlled self-resetting mechanism, making it suitable for installation in hard-to-reach locations. Under overload conditions, the contacts open to protect the load circuit. A low current excitation circuit ensures the contacts remain open, preventing hazardous automatic reset operations. Resetting is achieved by briefly switching off the supply circuit.
Key technical specifications include a holding current of less than 0.6A, an interrupting capacity of 200A at L/R = 2.5 ms, and a typical life of 300 operations at 2x IN. The operating temperature range is -30°C to +60°C. The housing offers IP54 degree of protection, while the terminal area is IP00.
Typical applications include battery-powered appliances and automotive and marine components. The breaker is designed to meet Type II to SAE J 553 standards.
The voltage rating is 12 VDC.
The current rating is 30 A.
It is a thermal circuit breaker.
It is a single pole (1) circuit breaker.
Yes, it features a controlled self-resetting mechanism.
The operating temperature range is -30°C to +60°C.
The housing area has an IP54 degree of protection.
