| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Reset Time | |
| Voltage Rating |

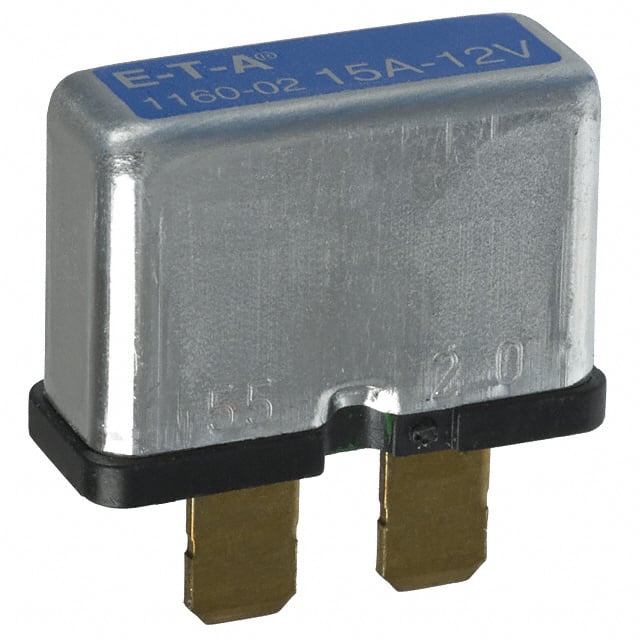

The E-T-A 1160-02-15A is a single-pole, thermal circuit breaker rated for 12VDC operation and a current of 15A. It is designed with a controlled self-resetting mechanism, making it suitable for installation in hard-to-reach areas where automatic reset operation could be hazardous. Under overload conditions, the circuit breaker contacts open to protect the load circuit, and a low current excitation circuit ensures the contacts remain open until the supply circuit is switched off for a short period.
This circuit breaker meets Type II requirements according to SAE J 553 and is ideal for automotive and marine extra-low voltage wiring systems and components, as well as battery-powered appliances. The housing offers an IP54 degree of protection, while the terminals are IP00. It has a typical life of 300 operations at 2x IN and an interrupting capacity of 200A at L/R = 2.5 ms.
Environmental specifications include an operating temperature range of -30°C to +60°C, resistance to vibration (5g), shock (25g), corrosion (96 hours salt mist), and humidity (240 hours at 95% RH). The device has a holding current of less than 0.6A and a reset time of less than 35 seconds at 23°C after 5 seconds of load.
12V DC.
15A.
It is a thermal circuit breaker with automatic reset and single pole configuration.
200A at L/R = 2.5 ms.
Less than 35 seconds at 23°C after 5 seconds of load.
-30°C to +60°C.
Holder mount.
