| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Termination | |
| Termination Style | |
| Type |

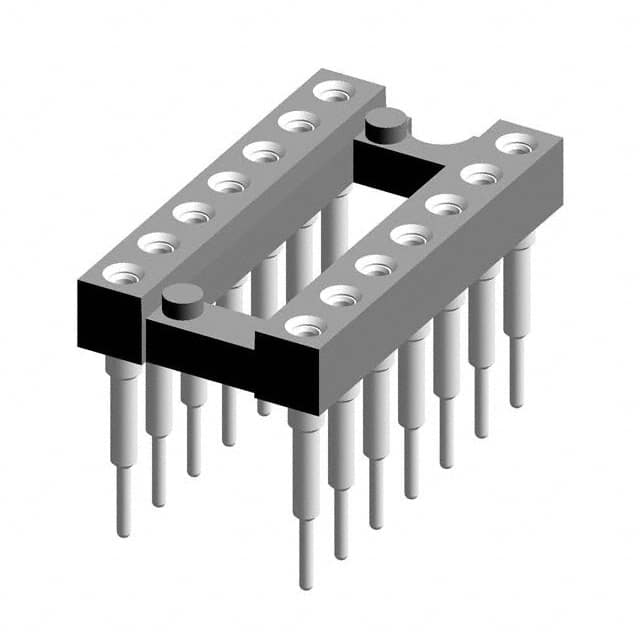

The Preci-Dip 116-83-314-41-003101 is a 14-position DIP socket designed for through hole mounting. It features a 2.54mm (0.100") pitch and 0.3" (7.62mm) row spacing, accommodating standard DIP packages. The socket uses beryllium copper contacts with a tin finish (29.5µin thickness) and a housing made of PCT/polyester/glass filled material. The elevated open frame design allows for easy insertion and removal of ICs. Operating temperature range is -55°C to 125°C. This socket is suitable for prototyping and production applications requiring reliable connections.
It has 14 positions arranged in a 2x7 grid.
The pitch is 2.54mm (0.100").
It is through hole mounting with solder termination.
Contacts are beryllium copper with a tin finish of 29.5µin (0.75µm) thickness.
-55°C to 125°C.
Polycyclohexylenedimethylene Terephthalate (PCT), polyester, glass filled.
