| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Type |

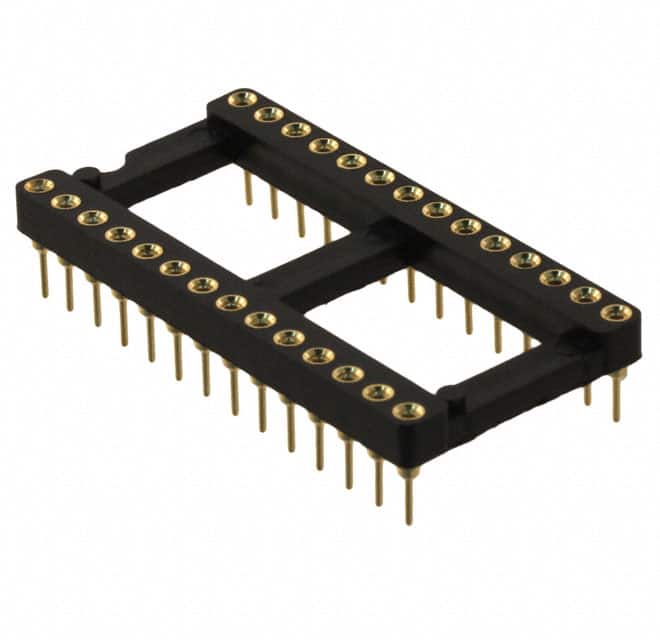

The Mill-Max 115-93-628-41-001000 is a 28-position dual-in-line (DIP) IC socket designed for through-hole mounting. It features a 0.6" (15.24mm) row spacing and a 2.54mm (0.100") pitch, making it suitable for standard 28-pin DIP packages. The socket uses an open-frame construction with a housing made of polycyclohexylenedimethylene terephthalate (PCT) and polyester.
Contacts are made of beryllium copper with a tin-lead finish (30.0µin / 0.76µm thickness), providing reliable electrical connections. The operating temperature range spans -55°C to 125°C, allowing use in a wide variety of environments. Termination is via solder connections to the PCB.
This socket is commonly used in prototyping, production, and testing applications where a 28-pin DIP IC needs to be inserted and removed without soldering directly to the board. The open-frame design aids in airflow and inspection of solder joints.
28 positions arranged as 2 rows of 14 (2 x 14).
2.54mm (0.100").
Through-hole mounting with solder termination.
-55°C to 125°C.
Beryllium copper contacts with a tin-lead finish (30.0µin / 0.76µm).
Polycyclohexylenedimethylene Terephthalate (PCT) and polyester.
