| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
118 pcs
|
118 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Pitch | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Socket Type | |
| Termination | |
| Termination Style | |
| Type |

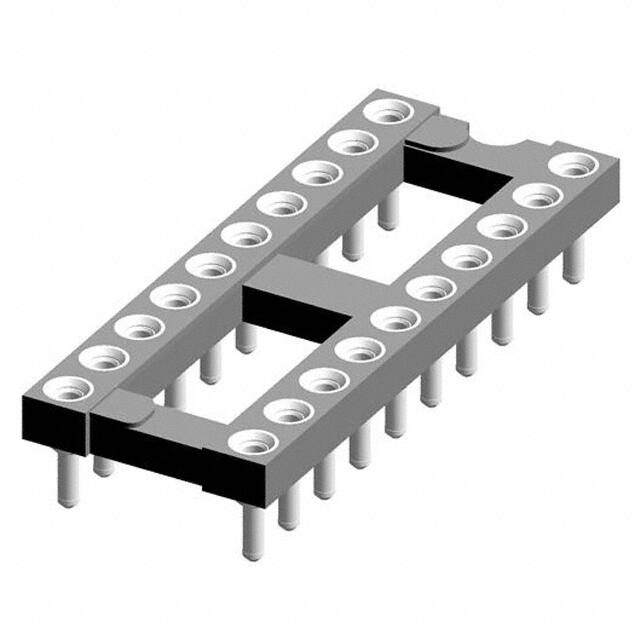

The Preci-Dip 115-83-320-41-003101 is a 20-position (2x10) DIP IC socket designed for through-hole mounting. It features a standard 2.54mm (0.100") pitch and 7.62mm (0.3") row spacing. The contacts are made of beryllium copper with a tin finish of 29.5µin (0.75µm). The housing is constructed from polycyclohexylenedimethylene terephthalate (PCT) and polyester, glass filled. Operating temperature ranges from -55°C to 125°C. The open frame design allows for improved airflow and heat dissipation. Termination is solder type.
20 positions (2x10).
2.54mm (0.100").
Through hole.
0.3" (7.62mm).
Beryllium copper.
-55°C to 125°C.
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled.
