| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Type |

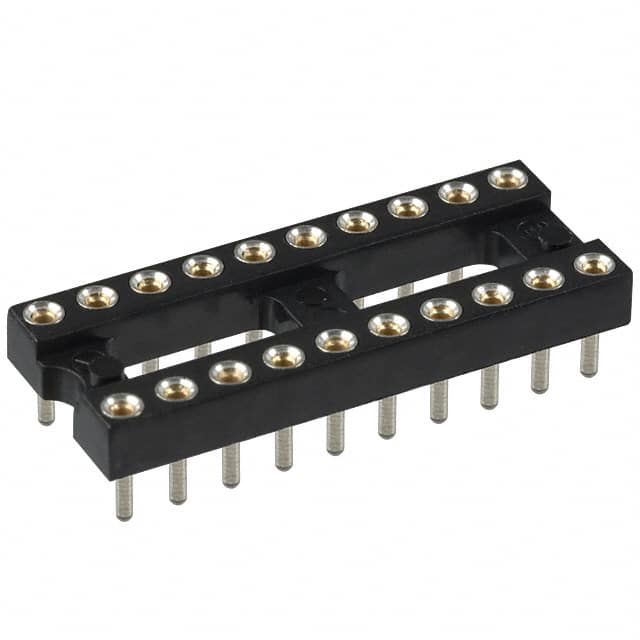

The Mill-Max 115-43-320-41-001000 is a 20-position DIP socket designed for through-hole mounting. It features a 0.3-inch (7.62mm) row spacing and a 2.54mm pitch, making it suitable for standard DIP IC packages. The socket uses an open frame design with tin-plated beryllium copper contacts (30µin thickness) and a housing made of PCT/polyester. It operates over a wide temperature range from -55°C to 125°C. Termination is via solder. This socket is ideal for prototyping and production applications requiring reliable connections for 20-pin DIP devices.
20 positions.
2.54mm (0.100 inches).
Through hole.
Tin with 30µin thickness.
-55°C to 125°C.
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester.
