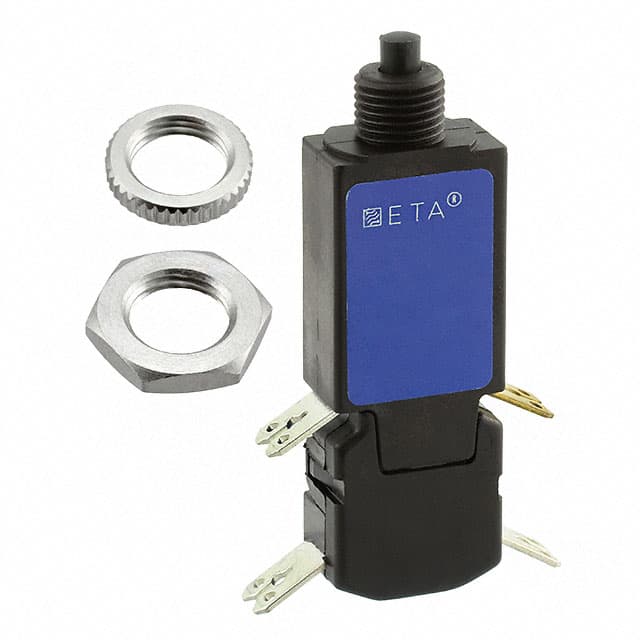

This E-T-A 1140-G151-P7M1-1A is a miniaturized, single-pole thermal overcurrent circuit breaker. It utilizes a tease-free, trip-free, snap-action mechanism compliant with EN 60934 (IEC 60934).
Key electrical specifications include a current rating of 1A, an AC voltage rating of 250V, and a DC voltage rating of 50V. The breaker type is thermal, and it features a medium delay characteristic curve (M1).
The device is designed for panel mounting and has a push-to-reset actuator. The terminal design consists of 1 blade terminal measuring 6.3 x 0.8 mm, compliant with IEC 61210. Approvals include CSA C22.2 No 235, IEC 60934, and UL1077.
Typical applications for this series include motors, transformers, solenoids, hand-held machines, and appliances. The 1140 series is available in various mounting versions, including panel mounting, snap-in, and integral types.
Thermal circuit breaker.
1A.
250VAC and 50VDC.
1 pole.
Push to Reset.
Panel mount.
M1 medium delay.
Blade terminals 6.3 x 0.8 mm.
