| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating | |
| Width |

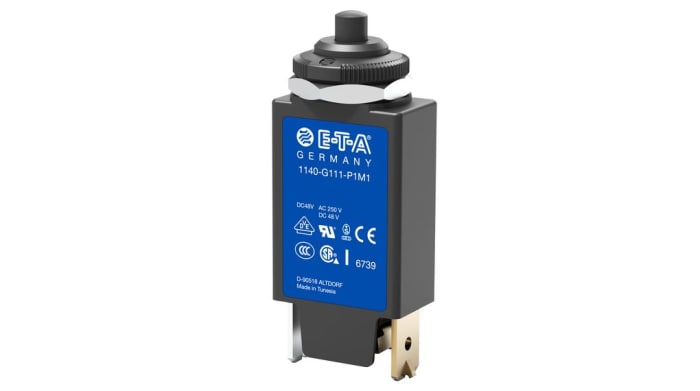

This E-T-A 1140 series thermal circuit breaker is a miniaturized, single-pole device with a push-to-reset, tease-free, trip-free, snap-action mechanism. It is approved to CBE standard EN 60934.
Key electrical specifications include a current rating of 12A, a voltage rating of 250 VAC and 50 VDC, and a breaking capacity of 2kA. The internal resistance at 10A is less than 0.02 Ohms.
Designed for panel mounting, this circuit breaker has a width of 35mm and a height of 10mm. It is suitable for typical applications such as motors, transformers, solenoids, hand-held machines, and appliances.
The device complies with RoHS3 and REACH standards, and has an MSL rating of 1. Approvals include CSA C22.2 No 235, IEC 60934, and UL1077.
The current rating is 12A.
It has a voltage rating of 250 VAC and 50 VDC.
This circuit breaker has 1 pole.
It features a push-to-reset actuator.
The mounting type is panel mount.
The breaking capacity is 2 kA.
Typical applications include motors, transformers, solenoids, hand-held machines, and appliances.
