1140-G151-P7M1-5A
ETA

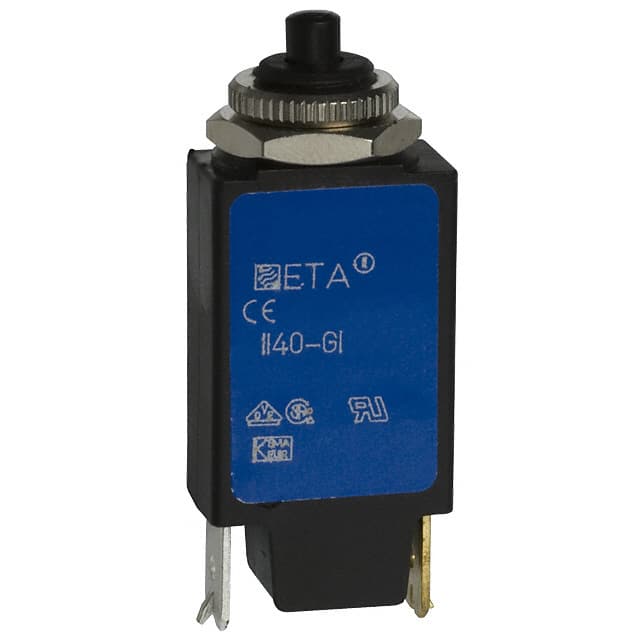

The E-T-A 1140-G151-P7M1-5A is a miniaturized single-pole thermal circuit breaker. It features a push-to-reset actuator and is designed for panel mounting.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |
This E-T-A 1140-G111-P1M1-5A is a miniaturized, single-pole thermal overcurrent circuit breaker designed for reliable protection. It operates with a push-to-reset, tease-free, trip-free snap action mechanism, conforming to R-type TO CBE standards.
The breaker is rated for 5 Amperes and supports a maximum voltage of 250 VAC and 50 VDC. It features blade terminals measuring 6.3 x 0.8 mm, compliant with IEC 61210, and is designed for panel mounting.
Typical applications for this circuit breaker include motors, transformers, solenoids, and hand-held machines and appliances. It is approved by CSA C22.2 No 235, IEC 60934, and UL1077.
Key specifications include a medium delay characteristic curve (M1) and an internal resistance of typically 0.03 Ohms at 5A. The device is compliant with RoHS3, has an MSL of 1, and is REACH unaffected.
The current rating is 5A.
The maximum AC voltage rating is 250 VAC.
The maximum DC voltage rating is 50 VDC.
It is a single-pole circuit breaker.
It is a thermal circuit breaker.
The mounting type is panel mount.
Typical applications include motors, transformers, solenoids, hand-held machines and appliances.
