1140-E211-P9M1-15A
ETA
The E-T-A 1140-E211-P9M1-15A is a single-pole thermal circuit breaker designed for overcurrent protection. It features a 15A current rating and a push-to-reset actuator.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

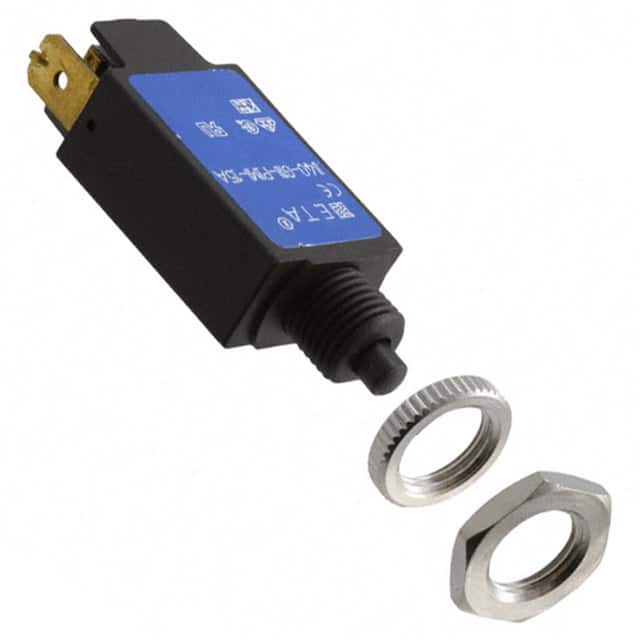

This E-T-A 1140-G111-P1M1-15A is a miniaturized, single-pole thermal overcurrent circuit breaker designed for reliable protection. It utilizes a snap-action mechanism and is approved to CBE standard EN 60934 (IEC 60934).
Key electrical specifications include a current rating of 15A and voltage ratings of 250VAC and 50VDC. The breaker type is thermal, with a medium delay characteristic curve. It is designed for panel mounting and features blade terminals measuring 6.3 x 0.8 mm.
Typical applications for this circuit breaker include motors, transformers, solenoids, hand-held machines, and appliances. The push-to-reset actuator allows for easy operation and reset after a trip event. The internal resistance is typically less than 0.02 Ohms at its rated current.
Approvals include CSA C22.2 No 235, IEC 60934, and UL1077, ensuring compliance with various international standards. This model is part of the 1140 series, offering a range of current ratings from 3.5A to 16A.
15 A.
250 VAC and 50 VDC.
Thermal.
1.
Push to Reset.
CSA C22.2 No 235, IEC 60934, UL1077.
Panel mount with blade terminals (6.3 x 0.8 mm).
