2-5200-H-10A
ETA
The E-T-A 2-5200-H-10A is a single-pole thermal circuit breaker designed for panel mounting. It features a push-to-reset actuator and a 10A current rating.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

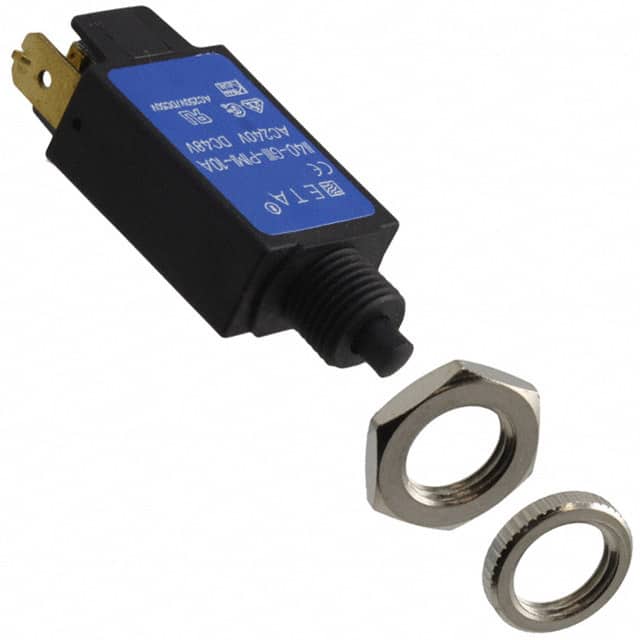

The E-T-A 1140-G111-P1M1-10A is a miniaturized, single-pole thermal circuit breaker utilizing a push-to-reset, snap-action mechanism. It is approved to CBE standard EN 60934 (IEC 60934) and suitable for applications such as motors, transformers, solenoids, and appliances.
This model offers a current rating of 10A and a voltage rating of 250VAC or 50VDC. It is designed for panel mounting and features blade terminals compliant with IEC 61210. The breaker has a medium delay characteristic curve.
Approvals include CSA C22.2 No 235, IEC 60934, and UL1077, ensuring compliance for various international standards. The internal resistance at 10A is less than 0.02 Ω. The breaker is also available in other mounting styles and current ratings.
The current rating is 10A.
The AC voltage rating is 250V.
The DC voltage rating is 50V.
It is a single-pole circuit breaker.
It is a thermal circuit breaker.
It uses a push-to-reset actuator.
It is approved by CSA C22.2 No 235, IEC 60934, and UL1077.
