| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,500 pcs
|
7500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions |

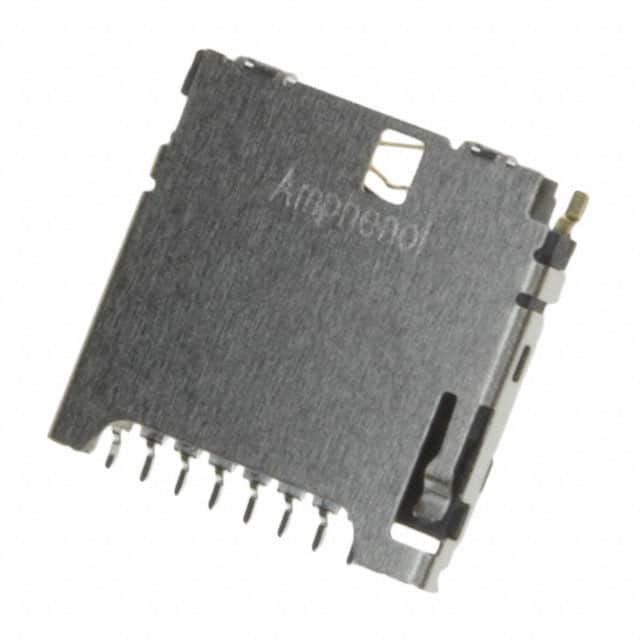

The Amphenol ICC 114-00841-68 is a Secure Digital microSD card connector designed for reliable memory card interfacing in space-constrained applications. It features a surface mount, right angle mounting orientation with a standard top-mounting feature, making it suitable for compact PCB layouts.
This connector offers 10 positions configured as 8 signal contacts plus 2 dedicated power/ground contacts. The contacts are finished with 0.38 µm (15.0 µin) of gold, ensuring reliable electrical performance and corrosion resistance over repeated insertion cycles. The card insertion and removal method is push-in, pull-out, and the connector includes an integrated card detect switch.
With a height above board of only 1.55 mm, this connector is ideal for low-profile portable devices such as smartphones, tablets, digital cameras, and other handheld electronics requiring microSD memory expansion.
This connector accepts Secure Digital microSD cards.
It has 10 positions, configured as 8 signal contacts and 2 power/ground contacts.
The mounting type is surface mount, right angle.
The height above board is 1.55 mm.
The contact finish is gold with a thickness of 0.38 µm.
Yes, it includes a switch feature for card detection.
The card is inserted by pushing in and removed by pulling out.
