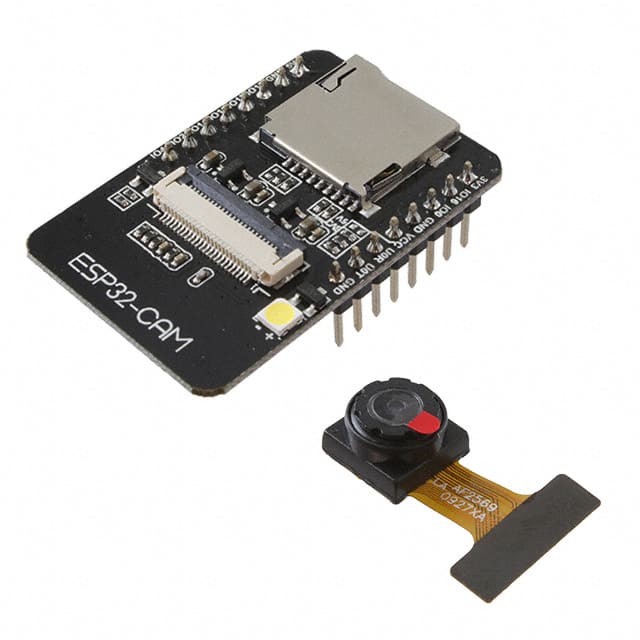

113990580 ESP32-CAM development board with integrated OV2640 2MP camera, ESP32 MCU, WiFi 802.11 b/g/n, and Bluetooth 4.2. Operates at 5 V with 160 MHz clock speed.
Mfr Part #:

113990580

Available from 1 distributors
Mfr Name: Seeed Technology Co., Ltd
Seeed Technology Co., Ltd
ESP32-CAM development board with integrated OV2640 2MP camera, ESP32 MCU, WiFi 802.11 b/g/n, and Bluetooth 4.2. Operates at 5 V with 160 MHz clock speed.
✓ Total Stock: 40 pcs

113990580 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

113990580 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Antenna Type
Approval Agency
Dimensions
Embedded
Frequency Range
Industrial Grade
Interface
Lead Style
Mounting Type
Operating Temperature Range
Package / Case
Sensor Type
Storage Temperature
Supplied Contents
Supply Current
Utilized IC
Voltage
Weight
View Similar Products (0)

113990580 Description

Short technical summary and product information.

The ESP32-CAM is a compact camera module development board designed for IoT applications. It integrates an ESP32 32-bit MCU with an OV2640 2MP image sensor, providing wireless connectivity via WiFi 802.11 b/g/n and Bluetooth 4.2 BR/EDR and BLE. The module operates at 5 V and features a 160 MHz clock speed with up to 600 DMIPS computing power.



Memory includes 520 KB SRAM plus 4 MB PSRAM and 32 Mbit SPI flash. The board supports UART, SPI, I2C, and PWM interfaces, and includes 9 GPIOs. Image output formats include JPEG (OV2640 only), BMP, and GRAYSCALE. The module also supports TF card storage up to 4 GB.



The ESP32-CAM is housed in a DIP-16 package measuring 27 x 40.5 x 4.5 mm and weighing 10 g. It features an onboard PCB antenna with 2 dBi gain and supports WPA/WPA2/WPA2-Enterprise/WPS security. Operating temperature range is -20°C to +85°C.

113990580 Quick Information

Product Type: Camera Module Development Board
Canonical Name: ESP32-CAM Wi-Fi+BT SoC Module with OV2640 Camera
Subcategory: Wireless Camera Development Board

113990580 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 - Unlimited
REACH Status: REACH Unaffected

113990580 Features

  • Integrated ESP32 32-bit MCU and OV2640 camera.
  • WiFi 802.11 b/g/n and Bluetooth 4.2 connectivity.
  • 160 MHz clock speed with 600 DMIPS computing power.
  • 4 MB PSRAM and 32 Mbit SPI flash memory.
  • DIP-16 package with through-hole mounting.

113990580 Applications

  • Ideal for wireless IoT camera applications.
  • Suitable for home smart devices and monitoring.
  • Used in QR wireless identification systems.
  • Applicable for industrial wireless control.

113990580 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the ESP32-CAM?

The operating voltage is 5 V.

What package type does the ESP32-CAM use?

The module uses a DIP-16 package.

What is the operating temperature range of the ESP32-CAM?

The operating temperature range is -20°C to +85°C.

Is the ESP32-CAM RoHS compliant?

RoHS compliance is unverified; distributor data indicates non-RoHS compliant.

What wireless standards does the ESP32-CAM support?

It supports WiFi 802.11 b/g/n and Bluetooth 4.2 BR/EDR and BLE.

What image output formats are supported?

JPEG (OV2640 only), BMP, and GRAYSCALE.

What is the clock speed of the ESP32-CAM?

The clock speed is up to 160 MHz with computing power up to 600 DMIPS.
