| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Color (locking) | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| Halogen Free | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Material (Locking) | |
| Material Flammability Class | |
| Mating Cycles | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Style | |
| Thread Size | |
| Un-/locking Temperature | |
| Width |

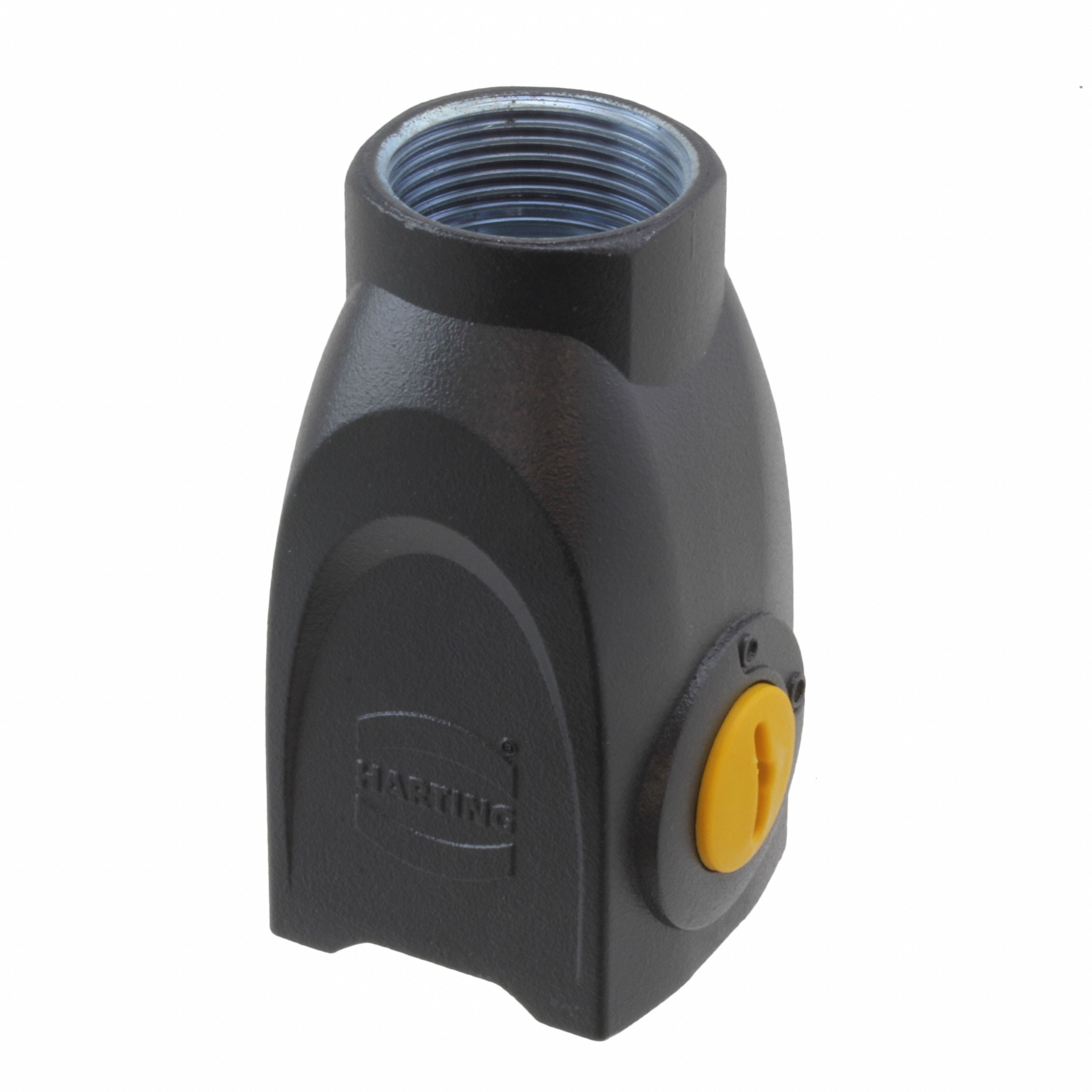

The Harting 11200031401 is a Han-Yellock 10 top entry hood designed for heavy duty connector applications. It features an M25 single cable entry and a push button snap lock mechanism. The housing is made of zinc die-cast with an epoxy powder paint finish in black (RAL 7021). The locking components are made of polyamide and stainless steel in melon yellow.
Environmental protection includes IP65 and IP67 ratings, making it suitable for harsh industrial environments. The operating temperature range is -40 to 125°C, and the unlocking temperature range is -10 to 85°C. It is rated for at least 500 mating cycles for reliable long-term use.
The hood is compliant with RoHS, REACH, ELV, and China RoHS regulations. The material flammability class is UL 94 V-0. The dimensions are 36.40mm length, 34.10mm width, and 70.40mm height, with a net weight of 173.46 g. It is manufactured in Romania and supplied individually.
IP65 and IP67
-40 to 125°C
Push button snap lock on hood
M25, single cable entry
Zinc die-cast with epoxy powder paint (black), locking parts are polyamide and stainless steel (melon yellow)
At least 500 cycles
Han-Yellock 10
