| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flammability Rating | |
| Housing Material | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Packaging Type | |
| Ratings | |
| Shielding | |
| Standard Package Quantity | |
| Tab Direction | |
| Termination | |
| UL Flammability |

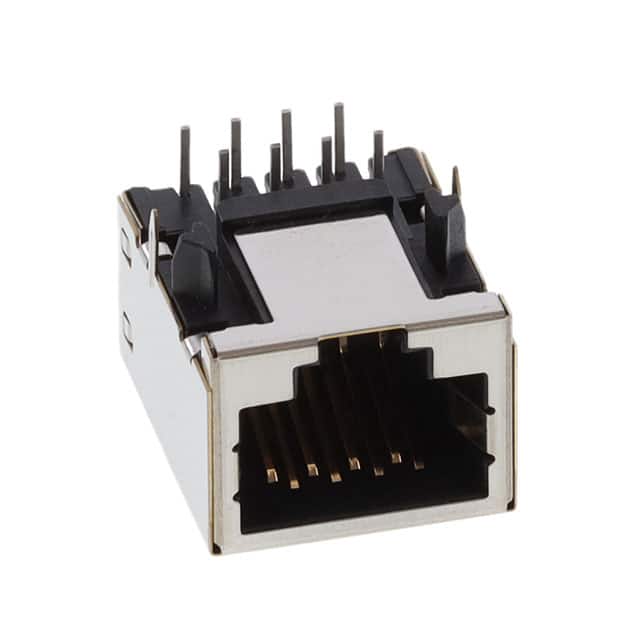

The TE Connectivity 1116503-2 is a single-port, 1-row modular connector jack designed for RJ45 Ethernet applications. It features 8 positions and 8 contacts (8P8C) and is rated for Cat5 performance. The connector is shielded with an EMI finger for electromagnetic interference protection, and the tab direction is down. Mounting is via board edge cutout and through hole, with solder termination. The housing is made of high temperature nylon, black, with a UL 94V-0 flammability rating. Contacts are phosphor bronze with gold plating in the localized area and tin-lead in the solder area. The shield is a copper zinc alloy with tin and nickel plating. The dielectric withstanding voltage between shield and terminal is 1500 VAC. This connector includes a board guide feature. Packaging is tray, with 66 assemblies per tray and 396 per box.
This is a modular jack (RJ45) with 8 positions and 8 contacts (8P8C).
It mounts via board edge cutout and through hole, with solder termination.
Yes, it is shielded with an EMI finger for electromagnetic interference protection.
Contacts are phosphor bronze with gold in the localized plate area and tin-lead in the solder area.
The high temperature nylon housing has a UL 94V-0 flammability rating.
The dielectric withstanding voltage between shield and terminal is 1500 VAC.
It is packaged in trays, 66 assemblies per tray and 396 per box.
