| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style |

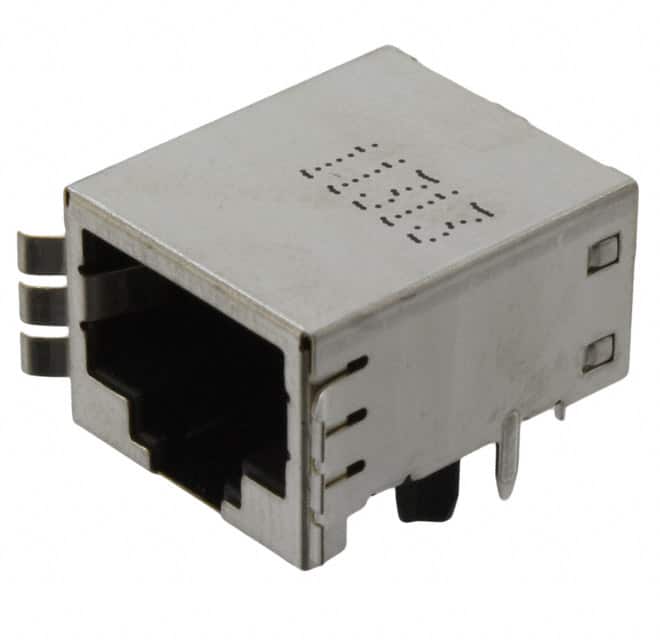

The TE Connectivity 1116062-2 is a modular connector jack with one port configured as 8p8c (RJ45, Ethernet). It features a right-angle orientation, shielded construction with a bezel EMI finger, and a board edge cutout through-hole mounting style. Termination is via solder, and the connector includes a board guide for alignment.
The contact system uses phosphor bronze contacts with a gold finish, suitable for reliable signal integrity. The connector is rated for Cat5 Ethernet applications. It does not include an LED, and the tab direction is down. This component is intended for PCB mounting where space-efficient right-angle mating and electromagnetic interference protection are required.
With a single row and single port, this jack is suitable for network interface applications in compact equipment such as routers, switches, and industrial controls.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.22 | $7.22 |
| 10+ | $6.38 | $6.38 |
| 25+ | $5.98 | $5.98 |
| 50+ | $5.58 | $5.58 |
| 100+ | $5.31 | $5.31 |
| 264+ | $5.05 | $5.05 |
| 396+ | $4.81 | $4.81 |
| 1,188+ | $4.74 | $4.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 8p8c (RJ45, Ethernet) positions.
The mounting type is board edge cutout with through-hole termination.
The orientation is 90° angle (right).
Yes, it is shielded and includes a bezel EMI finger.
Contacts are phosphor bronze with a gold finish.
No, it does not contain an LED.
It is rated for Cat5 Ethernet.
