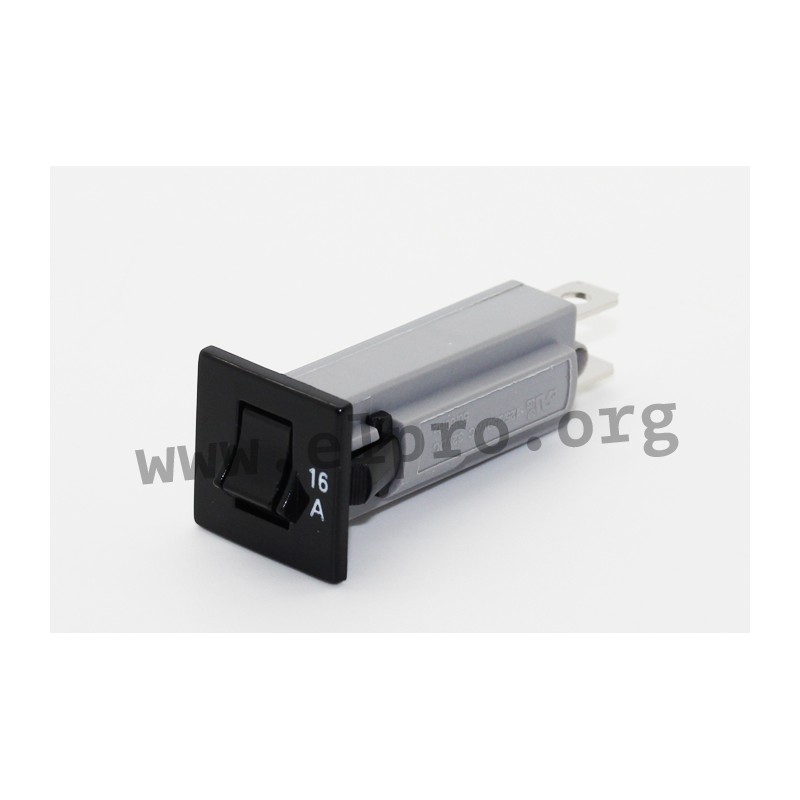

The E-T-A 1115-F111-P1T1-16A is a single-pole thermal reset circuit breaker featuring a space-saving, slim design and a reliable, trip-free mechanism. It is designed for ease of installation through a snap-in frame, suitable for panel thicknesses between 1.8 and 3 mm.
This circuit breaker has a current rating of 16A and a voltage rating of 250V AC / 32V DC. It is approved by UL1077 and EN60934, ensuring compliance with safety standards. The device features a black push-button actuator and blade terminals (6.3 x 0.8 mm).
Typical applications for the 1115 series include power supply units, UPS equipment, battery chargers, and office machines. The operating temperature range is -20°C to +60°C. The circuit breaker has a rupture capacity of 1000A at 250V AC (UL1077) and 200A at 32V DC (UL1077).
Key technical data includes a typical voltage drop of less than 250mV at 16A. The device has a mass of approximately 8g and is designed for a typical life of 500 operations at 1.5 times rated current (resistive load, AC 125V) or 50 operations at 2 times rated current (inductive load, AC 250V).
The breaker supports up to 250V AC and 32V DC.
It uses a snap-in mounting method designed for panel thicknesses between 1.8mm and 3mm.
The device operates reliably within an ambient temperature range of -20°C to +60°C.
It utilizes 6.3 x 0.8mm blade terminals for electrical connections.
It withstands 500 operations at 1.5 times rated current under resistive AC loads.
It is approved by UL under UL1077 and certified by TÜV to EN 60934/IEC 60934.
