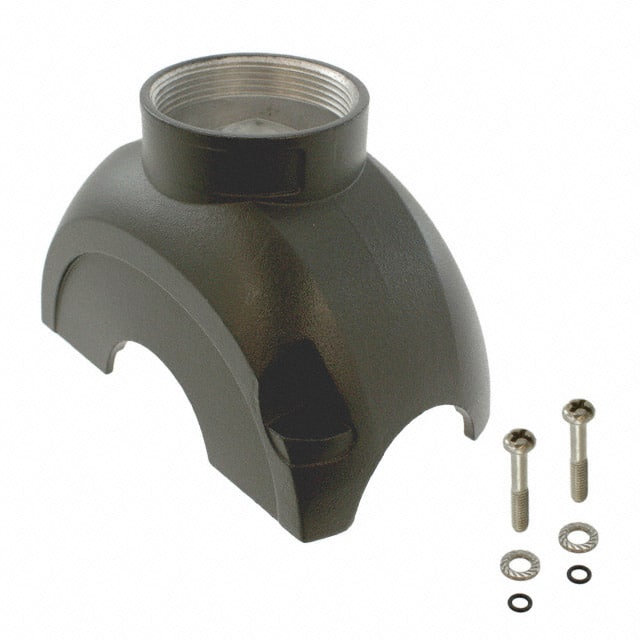

The HARTING 11126001403 is a Han-Yellock 60 shell designed for top entry cable routing with a single M40 cable entry. This shell is part of the Han-Yellock series, offering a compact and robust housing solution for industrial connector applications.
The housing is constructed from aluminum die-cast with a powder-coated finish in RAL 7021 (black grey). It features a push button locking mechanism for secure mating. The shell provides ingress protection ratings of IP65 (dust-tight and water-resistant) and IP67 (waterproof), and operates within a limiting temperature range of -40°C to 125°C, with an unlocking temperature range of -10°C to 85°C.
Compliance includes RoHS, REACH (no SVHC), and California Proposition 65 (nickel, naphthalene). The material achieves UL 94 V-0 flammability class. The shell meets IEC 60664-1 and IEC 61984 standards and holds approvals from CE and DNV GL. Dimensions are 100.89 mm x 56.00 mm x 67.90 mm with a net weight of 143.8 g.
IP65 and IP67 (dust-tight, water-resistant, waterproof).
Limiting temperature is -40°C to 125°C; un/locking temperature is -10°C to 85°C.
Aluminium die-cast with powder-coated finish in RAL 7021 (black grey).
Push button locking.
CE, DNV GL; standards IEC 60664-1 and IEC 61984.
UL 94 V-0.
