| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| China RoHS | |
| Color | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| Failure Rate | |
| Flammability Rating | |
| Height | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Temperature Range | |
| Mounting Type | |
| Operating Temperature | |
| Prop 65 | |
| SVHC Present | |
| Seal Material | |
| Standards | |
| Style | |
| Weight | |
| Width |

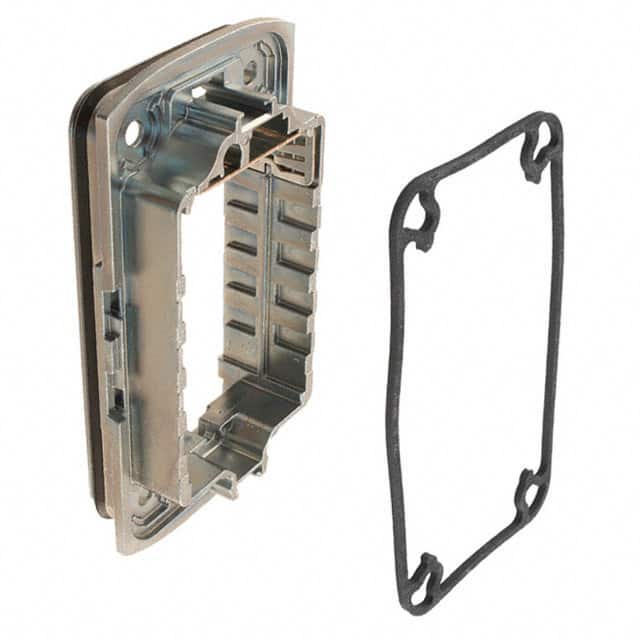

The Harting 11126000301 is a Han-Yellock 60 bulkhead housing designed for industrial heavy-duty connector applications. It features a bottom entry style and is intended for panel mounting. The housing is constructed from zinc die-cast with a passivated metallic finish, providing robust mechanical protection. The seal is made of NBR, and the housing achieves an ingress protection rating of IP65/IP67, making it suitable for environments requiring dust tightness and water resistance or waterproofing. It operates over a temperature range of -40°C to 125°C, with a locking temperature range of -10°C to 85°C. The housing meets UL 94 V-0 flammability rating and complies with IEC 60664-1 and IEC 61984 standards. It is RoHS, REACH, ELV, and China RoHS compliant. The part weighs 145 g and has dimensions of 104.00mm x 56.00mm x 23.40mm.
IP65/IP67 (dust tight, water resistant, waterproof).
-40°C to 125°C.
Zinc die-cast with passivated finish.
UL 94 V-0.
IEC 60664-1 and IEC 61984.
-10°C to 85°C.
