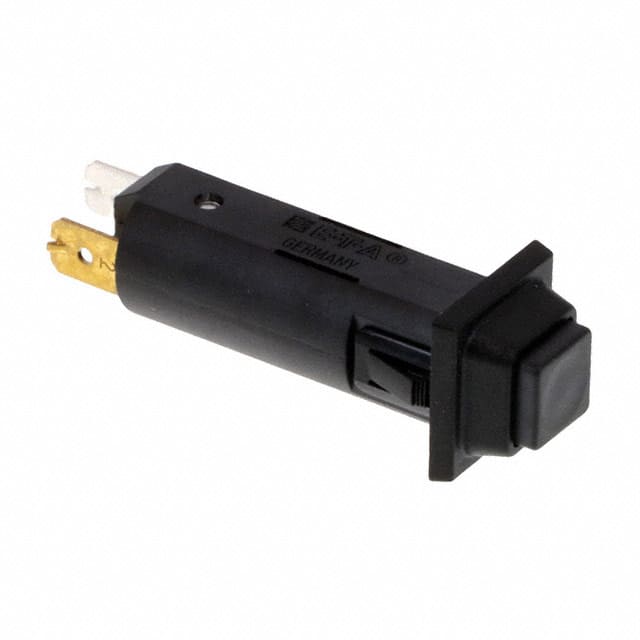

This E-T-A 1110-F112-P1M1-5A is a thermal overcurrent circuit breaker featuring a tease-free, trip-free snap action mechanism. It is designed for snap-in panel mounting, utilizing standard fuse-holder cut-out dimensions. The breaker combines the functions of an ON/OFF switch and overload protection, offering cost and space savings.
Key electrical specifications include a voltage rating of 250V AC and 50V DC, with a current rating of 5A. It is a single-pole device with a thermal breaker type and a push-push actuator. Approvals include CSA C22.2 No 235, IEC 60934, and UL1077.
Typical applications for this circuit breaker include motors, transformers, solenoids, extra-low voltage systems, household and office machines, instrumentation, marine applications, and mobile homes. The panel mount design and integrated switch functionality make it suitable for various equipment and machine designs.
The voltage rating is 250V AC and 50V DC.
The current rating is 5A.
It is designed for panel mounting.
It is a thermal circuit breaker.
It is a single-pole (1-pole) circuit breaker.
The actuator type is Push-Push.
It is approved to CSA C22.2 No 235, IEC 60934, and UL1077.
