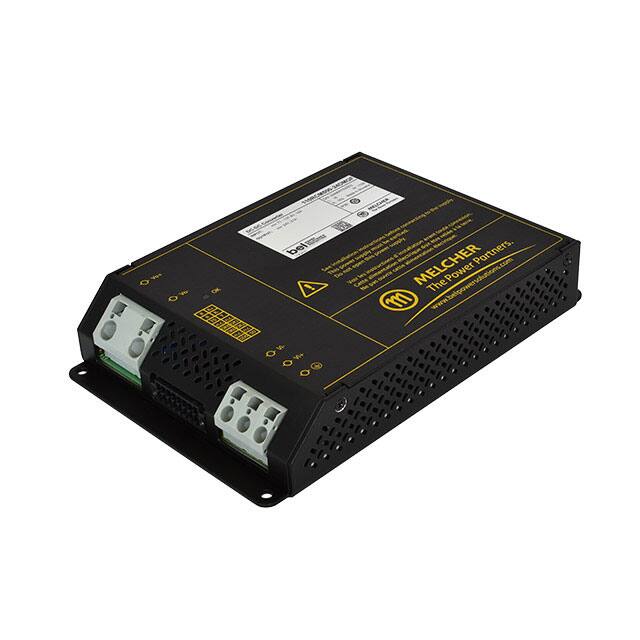

The Bel Power Solutions RCM500/1000 Series 110RCM500-24 is a reliable 500W DC-DC converter designed for railway and transportation systems. It provides a stable 24V output voltage at 21A, optimized for 110V railway batteries.
Key electrical specifications include a wide input voltage range of 50.4 to 137.5 VDC and a high efficiency of 96%. The converter operates reliably within an ambient temperature range of -40°C to 85°C.
Designed for chassis mounting, this converter features an enclosed housing with cooling openings. Its dimensions are 209.0mm in length, 141.0mm in width, and 39.9mm in height. The unit offers 4.2 kV isolation voltage and is suitable for ITE (Commercial) and Railway applications.
Compliance includes RoHS3, REACH Unaffected, and MSL 1 Unlimited. Safety approvals cover CE standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 50.4V to 137.5V DC.
The output voltage is 24 VDC.
The maximum output current is 21A.
The efficiency is 96%.
The dimensions are approximately 209mm in length, 141mm in width, and 39.9mm in height.
The operating temperature range is -40°C to 85°C.
It is marked as RoHS3 compliant, but this status is unverified.
