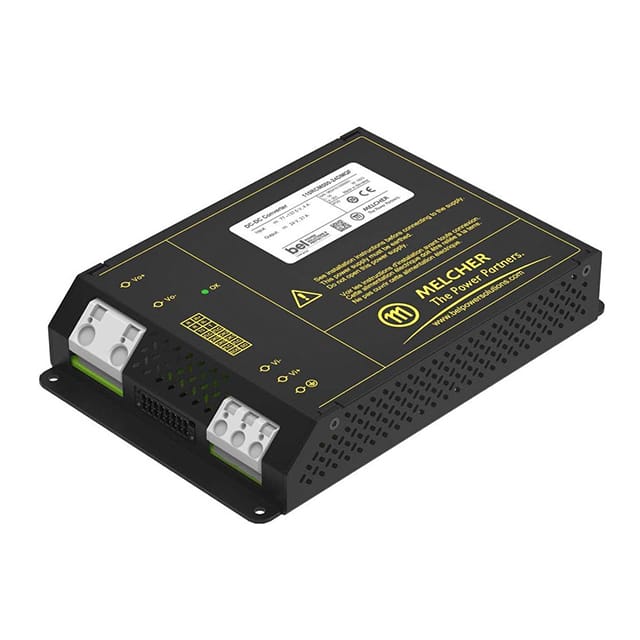

The Bel Power Solutions RCM500/1000 Series 110RCM1000-24DMQF is a robust DC-DC converter designed for railway and transportation systems. It is optimized for 110V railway batteries, delivering a stable 24V output at 1008W. This converter features a high efficiency of 96.4% and a high power density, housed in a closed chassis mountable enclosure with cooling openings.
Key electrical specifications include an input voltage range of 50.4 to 137.5 VDC and an output current of 42A. The operating temperature range is -40°C to 70°C with derating. The unit offers 4.2 kV isolation voltage and includes overtemperature, overvoltage, overcurrent, and short-circuit protection.
Designed for demanding environments, the converter complies with EN 50155 and EN 50121-3-2 standards. It is built for chassis mounting, providing a reliable power solution for transportation applications. Many options are available, including output ORing FET for redundant operation and output voltage adjustment.
| Qty | Low | High |
|---|---|---|
| 1+ | $927.51 | $927.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 50.4V to 137.5V DC.
The output voltage is 24V.
The maximum output current is 42A.
The typical efficiency is 96.4%.
It operates from -40°C to 70°C with derating.
Yes, it is RoHS3 compliant.
