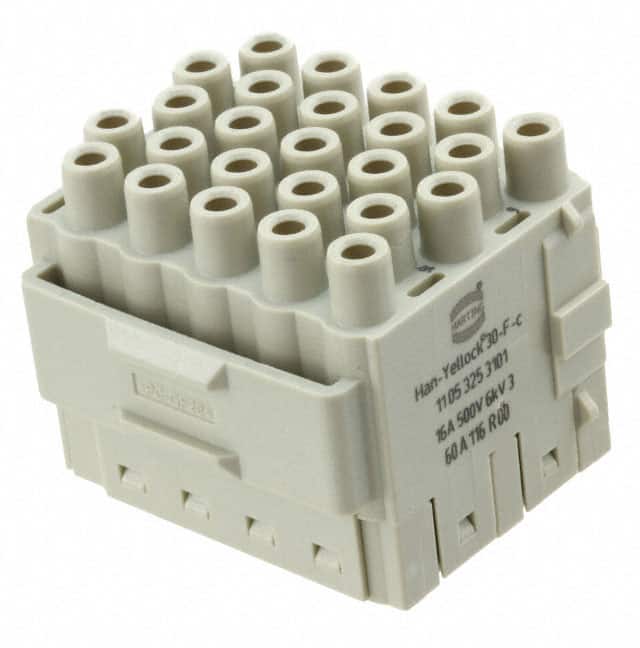

11053253101 Harting Han-Yellock 30 female monoblock insert with 25 crimp contacts. Rated 16 A and 500 V, with a temperature range of -40 to +125 °C.
Mfr Part #:

11053253101

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han-Yellock 30 female monoblock insert with 25 crimp contacts. Rated 16 A and 500 V, with a temperature range of -40 to +125 °C.
✓ Total Stock: 37 pcs

11053253101 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
37 pcs
On Request
37 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

11053253101 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Type
Current Rating (Amps)
Failure Rate
Gender
Industrial Grade
Insulation Resistance
Lead Style
Mating Cycles
Number of Contacts
Number of Positions
Operating Temperature
Rated Current
Rated Voltage
Specifications
Termination Method
Termination Style
Voltage Rating
View Similar Products (0)

11053253101 Description

Short technical summary and product information.

The Harting 11053253101 is a Han-Yellock 30 female monoblock insert designed for heavy-duty connector applications. It features 25 contacts and uses crimp termination, requiring crimp contacts to be ordered separately. The insert is rated for 16 A current and 500 V voltage, with a rated impulse voltage of 6 kV and pollution degree 3.



Constructed from polycarbonate (PC) with a pebble grey RAL 7032 color, the insert meets UL 94 V-0 flammability requirements. It operates over a limiting temperature range of -40 to +125 °C and is rated for at least 500 mating cycles. The conductor cross-section range is 0.14 to 4 mm².



This insert complies with IEC 60664-1, IEC 61984, and UL 1977 standards, and carries DNV GL approval. It is RoHS, ELV, and China RoHS compliant, and REACH Annex XVII, Annex XIV, and SVHC substances are not contained. Fire protection on railway vehicles meets EN 45545-2 R22 and R23 hazard levels HL 1-3.

11053253101 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han-Yellock 30
Canonical Name: Harting Han-Yellock 30 Monoblock Female Insert, 25 Contacts, Crimp Termination
Subcategory: Module without Contacts

11053253101 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1
REACH Status: Compliant

11053253101 Features

  • 25-position female monoblock insert.
  • Rated 16 A and 500 V.
  • Crimp termination for flexible wiring.
  • Polycarbonate housing UL 94 V-0.
  • Operates from -40 to +125 °C.

11053253101 Applications

  • Heavy-duty industrial connector systems.
  • Railway vehicle electrical interconnections.
  • Power and signal distribution modules.
  • Harsh environment automation equipment.

11053253101 FAQs

6 frequently asked questions generated from this part’s specifications.
How many contacts does the Harting 11053253101 insert have?

It has 25 contacts.

What is the current and voltage rating of this insert?

Rated current is 16 A and rated voltage is 500 V.

What termination method does this insert use?

It uses crimp termination.

What is the operating temperature range?

The limiting temperature range is -40 to +125 °C.

What flammability rating does the insert material have?

The polycarbonate insert is rated UL 94 V-0.

Is this insert RoHS compliant?

Yes, it is RoHS compliant.
