| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,646 pcs
|
1646 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,178 pcs
|
1178 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Features | |
| Housing Material | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

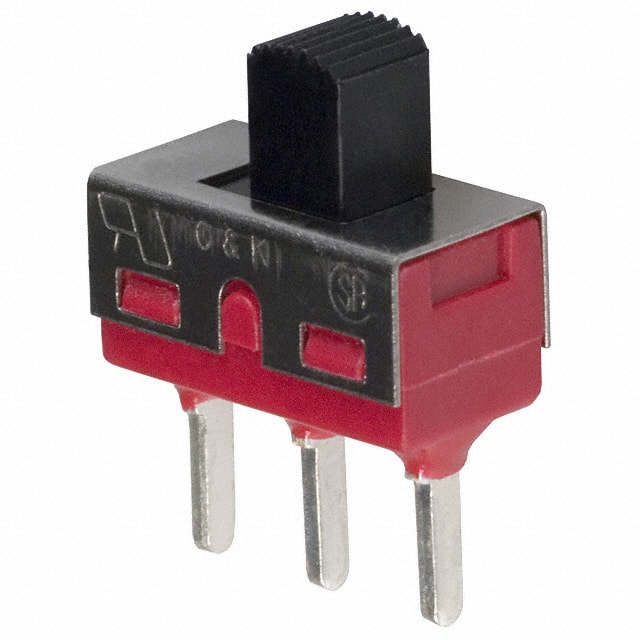

The C&K Components 1101 Series miniature slide switch, part number 1101M2S3CQE2, offers a reliable solution for various applications. This switch features a Single Pole Double Throw (SPDT) circuit and is designed for through-hole mounting.
With a contact rating of 6A at 120V AC/DC and 3A at 250V AC, it is suitable for moderate power switching tasks. The operating temperature range is from -30°C to 65°C, ensuring performance in diverse environments. The switch utilizes copper contacts with a silver finish and features an epoxy terminal seal compatible with bottom-wash cleaning processes.
Key specifications include a typical initial contact resistance below 10 mΩ, insulation resistance of at least 1 GΩ, and dielectric strength of 1,000 Vrms. The electrical life is rated for 40,000 cycles at full load for models with Q contact material. The actuator is made of nylon, and the housing is stainless steel, contributing to its durability.
This series is commonly found in test & measurement equipment, telecommunications, and computer peripherals industries. The epoxy terminal seal and optional panel mount tabs provide design flexibility.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating for Q contact material is 6 amps at 125 V AC or 28 V DC, and 3 amps at 250 V AC. For B contact material, it is 0.4 VA max at 20 V AC or DC max.
The operating temperature range is from -30°C to 65°C.
This switch has a Single Pole Double Throw (SPDT) circuit.
It is designed for through-hole mounting.
The electrical life is 40,000 cycles at full load for models with Q contact material.
