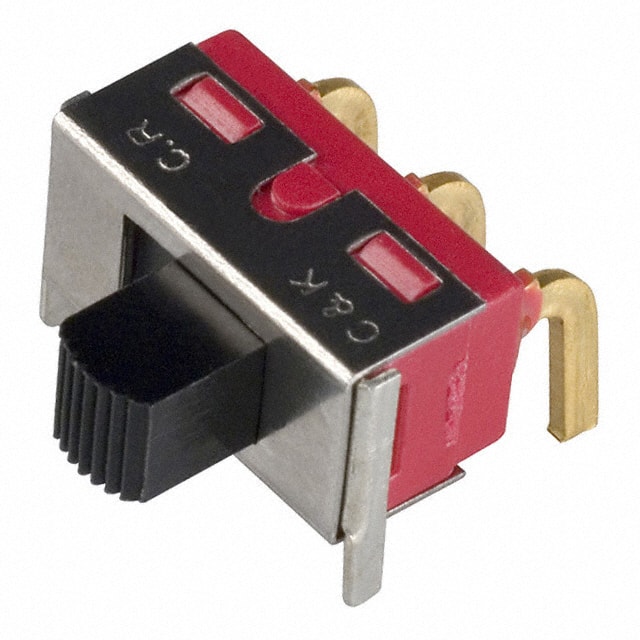

1101M2S3ABE2 The C&K Components 1101M2S3ABE2 is a Single Pole Double Throw (SPDT) slide switch. It features a 0.4VA contact rating and 20V voltage rating.
Mfr Part #:

1101M2S3ABE2

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components 1101M2S3ABE2 is a Single Pole Double Throw (SPDT) slide switch. It features a 0.4VA contact rating and 20V voltage rating.
✓ Total Stock: 148 pcs
$ Price Range: $0.75

1101M2S3ABE2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
148 pcs
On Request
148 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1101M2S3ABE2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Material
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Resistance
Contact Timing
Current Rating (Amps)
Features
Housing Material
Insulation Resistance
Mounting Type
Operating Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

1101M2S3ABE2 Description

Short technical summary and product information.

The C&K Components 1101M2S3ABE2 is a miniature slide switch from the 1000 Series. This SPDT switch is designed for applications requiring reliable switching. It offers a contact rating of 0.4VA at 20V AC/DC and a contact resistance below 10 mΩ.



The switch features a through-hole, right-angle mounting type with PC pin termination. The contact material is copper with a gold finish, ensuring good conductivity. The operating temperature range is -30°C to 65°C.



This series is epoxy terminal-seal compatible with bottom-wash cleaning and comes with optional panel mount tabs. Applications include test & measurement equipment, telecommunications, and computers & peripherals.

1101M2S3ABE2 Quick Information

Product Type: Slide Switch
Series: 1000 Series
Canonical Name: C&K Components 1101 Series SPDT Slide Switch
Subcategory: Slide Switch

1101M2S3ABE2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1101M2S3ABE2 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

1101M2S3ABE2 Features

  • SPDT circuit configuration.
  • 0.4VA contact rating at 20V.
  • Through hole, right angle mounting.
  • Copper contacts with gold finish.
  • Operating temperature from -30°C to 65°C.

1101M2S3ABE2 Applications

  • Used in low-power electronic switching
  • Suitable for control panels and instrumentation
  • Ideal for applications requiring reliable SPDT switching
  • Mounts easily via through-hole design

1101M2S3ABE2 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the contact rating of the 1101M2S3ABE2 switch?

The contact rating is 0.4VA at 20V, with a maximum of 6 amps at 125 V AC or 28 V DC, and 3 amps at 250 V AC.

What is the operating temperature range for this switch?

The operating temperature range is from -30°C to 65°C.

What materials are used for the case and actuator?

The case is made of Diallyl phthalate (DAP), and the actuator is nylon.

What is the dielectric strength of the switch?

The dielectric strength is 1,000 Vrms at sea level.

What mounting style does the switch support?

It supports through-hole, right-angle mounting with PC pins.
