| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Type |

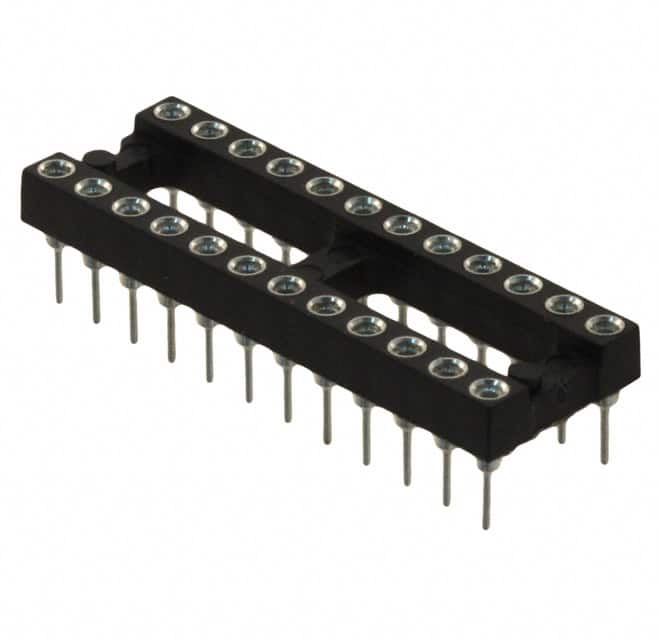

The 110-99-324-41-001000 is a 24-position DIP socket manufactured by Mill-Max. It is designed for through-hole mounting and features a 2.54mm (0.100") pitch with 0.3" (7.62mm) row spacing, accommodating 2 rows of 12 pins each. The socket is of the open frame type, allowing for airflow and cleaning. Contacts are made of beryllium copper with a tin-lead finish of 200µin (5.08µm) thickness. The housing is molded from polycyclohexylenedimethylene terephthalate (PCT) polyester.
The operating temperature range is -55°C to 125°C. The socket is RoHS3 compliant (unverified). This DIP socket is suitable for prototyping and production applications where a reliable interconnect for dual-in-line ICs is required. Its open frame design facilitates inspection and cleaning after soldering.
The use of beryllium copper for contacts ensures good spring properties and reliability over repeated insertions. The tin-lead finish provides a solderable surface, though RoHS compliance is unverified and should be confirmed with the manufacturer for restrictions on lead use.
24 positions arranged in 2 rows of 12.
2.54mm (0.100").
Through hole with solder termination.
Beryllium copper.
Tin-lead with 200µin (5.08µm) thickness.
-55°C to 125°C.
0.3" (7.62mm).
