| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
151 pcs
|
151 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Termination | |
| Termination Style | |
| Type |

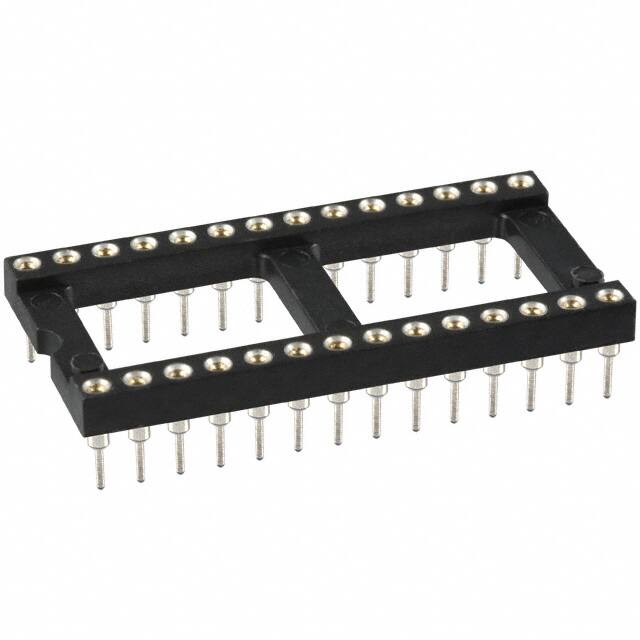

This Mill-Max Manufacturing DIP socket, model 110-93-628-41-001000, is a 28-position through-hole IC socket with a 0.6 inch (15.24mm) row spacing and a standard 2.54mm pitch. The open frame design facilitates airflow and inspection. The socket housing is constructed from PCT/polyester material. Contacts are made of beryllium copper with a tin-lead plating of 30 microinches. The termination type is solder. Operating temperature range is -55°C to 125°C. This socket is suitable for applications requiring reliable interconnection of DIP-packaged ICs.
28 positions (2 x 14)
2.54mm (0.100 inches)
Through hole
Beryllium copper contacts with 30 microinch tin-lead finish
-55°C to 125°C
Polycyclohexylenedimethylene Terephthalate (PCT), polyester
