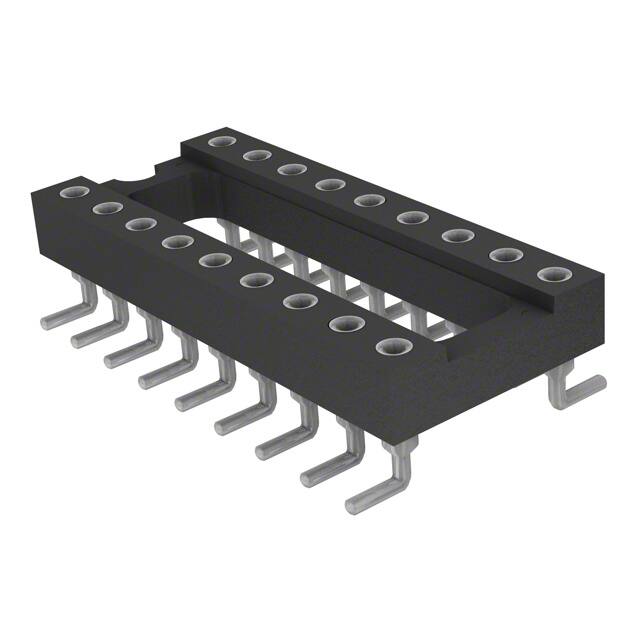

110-93-318-41-105000 Mill-Max 110-93-318-41-105000 is an 18-position (2x9) DIP IC socket with 2.54mm pitch, designed for surface mount soldering. It features an open frame, beryllium copper contacts with tin-lead plating, and a PCT/Polyester housing.
Mfr Part #:

110-93-318-41-105000

Available from 1 distributors
Mfr Name: Mill-Max Manufacturing
Mill-Max Manufacturing
Mill-Max 110-93-318-41-105000 is an 18-position (2x9) DIP IC socket with 2.54mm pitch, designed for surface mount soldering. It features an open frame, beryllium copper contacts with tin-lead plating, and a PCT/Polyester housing.
✓ Total Stock: 66 pcs

110-93-318-41-105000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
66 pcs
On Request
66 pcs On Request 1 On Request On Request NDC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

110-93-318-41-105000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Finish Thickness
Contact Material
Features
Housing Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions or Pins (Grid)
Operating Temperature
Pitch
Termination
Termination Style
Type
View Similar Products (0)

110-93-318-41-105000 Description

Short technical summary and product information.

The Mill-Max 110-93-318-41-105000 is an 18-position (2x9) DIP IC socket with a 0.3" (7.62mm) row spacing and 2.54mm pitch. It is designed for surface mount termination using solder, making it suitable for automated assembly processes. The socket features an open frame construction, which allows for improved airflow and easier inspection of solder joints.



The contacts are made of beryllium copper, a material known for its excellent electrical conductivity and mechanical resilience. The contact finish is tin-lead with a thickness of 30.0µin (0.76µm), providing good solderability and reliable connections. The housing is constructed from Polycyclohexylenedimethylene Terephthalate (PCT) and Polyester, offering high temperature resistance and dimensional stability.



This socket operates over a wide temperature range of -55°C to 125°C, making it suitable for demanding environments. It is commonly used in applications requiring reliable interconnection for dual in-line package (DIP) ICs, such as in industrial control systems, test equipment, and prototyping.

110-93-318-41-105000 Quick Information

Product Type: IC Socket
Series: 110
Canonical Name: Mill-Max 110-93-318-41-105000 18-Position DIP IC Socket (0.3" Row Spacing, Surface Mount)
Subcategory: DIP Socket

110-93-318-41-105000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

110-93-318-41-105000 Features

  • 18-position DIP socket with 2.54mm pitch.
  • Surface mount termination for automated assembly.
  • Beryllium copper contacts ensure reliable connections.
  • Tin-lead contact finish for solderability.
  • Open frame design for improved airflow.

110-93-318-41-105000 Applications

  • Ideal for prototyping and production IC sockets.
  • Used in test and measurement equipment.
  • Suitable for high-reliability industrial applications.
  • Compatible with standard 0.3" DIP packages.

110-93-318-41-105000 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this socket have?

This socket has 18 positions arranged in a 2x9 grid.

What is the pitch of this DIP socket?

The pitch is 2.54mm (0.100").

What is the mounting type?

This socket is designed for surface mount soldering.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What contact material is used?

The contacts are made of beryllium copper.

What is the contact finish?

The contact finish is tin-lead with a thickness of 30.0µin (0.76µm).

What is the housing material?

The housing is made of Polycyclohexylenedimethylene Terephthalate (PCT) and Polyester.
