| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
345 pcs
|
345 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Package Type | |
| Pitch | |
| Socket Type | |
| Termination | |
| Termination Style | |
| Type |

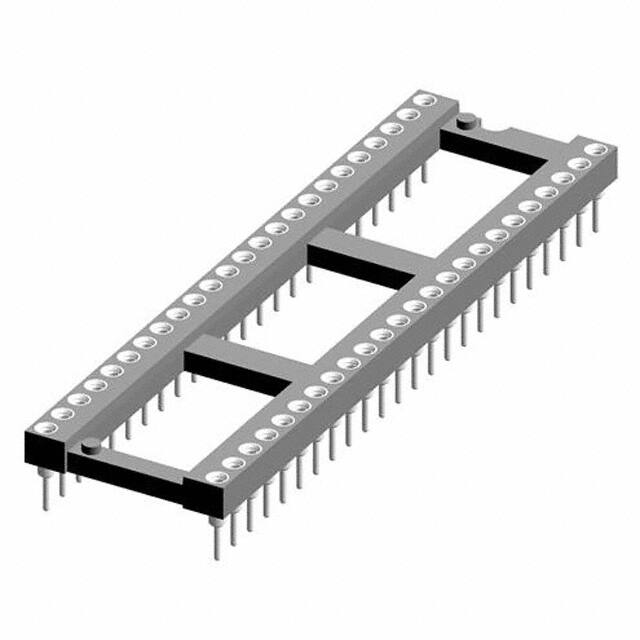

The Preci-Dip 110-87-648-41-001101 is a 48-position dual in-line (DIP) IC socket designed for through-hole mounting. It features a 0.6-inch (15.24mm) row spacing and a 2.54mm (0.100-inch) pitch, accommodating standard DIP packages with 48 pins arranged in a 2x24 grid.
The socket uses beryllium copper contacts with a tin flash finish, providing reliable electrical connections. The housing is made of polycyclohexylenedimethylene terephthalate (PCT) polyester, glass-filled for durability. The open-frame design allows for better heat dissipation and visual inspection of solder joints.
This socket operates over a temperature range of -55°C to 125°C, making it suitable for a wide range of industrial and commercial applications. It is RoHS3 compliant and REACH unaffected, though these compliance claims are unverified.
48 positions arranged in a 2x24 grid.
2.54mm (0.100 inches).
Through-hole mounting with solder termination.
Beryllium copper contacts with tin flash finish.
-55°C to 125°C.
Polycyclohexylenedimethylene terephthalate (PCT), polyester, glass filled.
Yes, it features an open-frame design.
