| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
58 pcs
|
58 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Type |

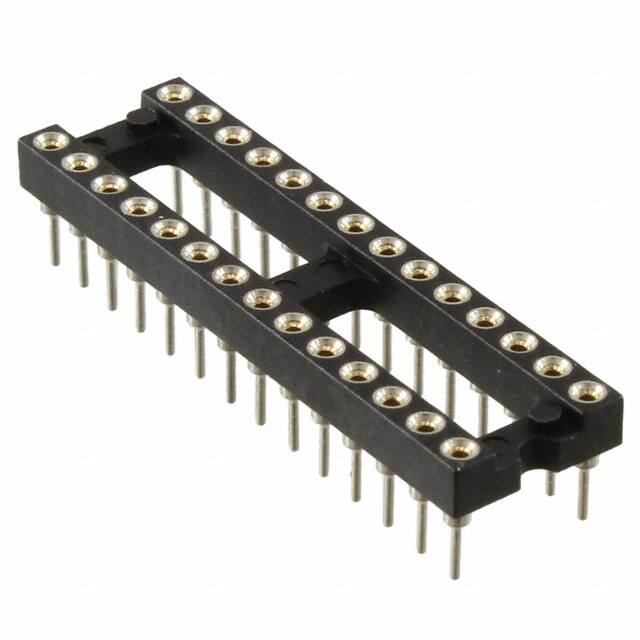

The Preci-Dip 110-87-328-41-001101 is a 28-position (2 x 14) DIP IC socket designed for through-hole mounting. It features a standard 2.54mm (0.100") pitch and 0.3" (7.62mm) row spacing, making it compatible with common dual-in-line packages.
Constructed with a glass-filled PCT (polycyclohexylenedimethylene terephthalate) polyester housing, the socket offers good mechanical strength and thermal stability. The contacts are made from beryllium copper with a tin flash finish, providing reliable electrical connection and corrosion resistance.
The open frame design allows for easy inspection of solder joints and airflow during operation. The socket operates over a wide temperature range of -55°C to 125°C, suitable for industrial and automotive environments.
Typical applications include prototyping, programming, and production sockets for 28-pin DIP ICs. The through-hole termination ensures robust mechanical attachment to printed circuit boards.
28 positions arranged in a 2 x 14 grid.
2.54mm (0.100") between pins.
Through hole (solder termination).
Beryllium copper.
Tin (flash thickness).
-55°C to 125°C.
DIP socket with 0.3" (7.62mm) row spacing and open frame design.
