| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Package Type | |
| Pitch | |
| Row Spacing | |
| Termination | |
| Termination Style | |
| Type |

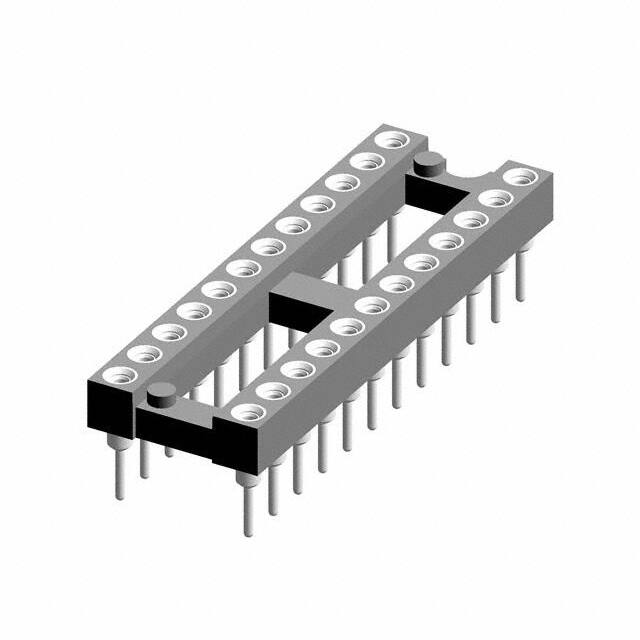

This is a 24-position dual in-line (DIP) IC socket from Preci-Dip, designed for through-hole mounting with a 2.54mm (0.100") pitch and 7.62mm (0.300") row spacing. It features tin-plated (flash) beryllium copper contacts for reliable electrical connections. The housing is made of polycyclohexylenedimethylene terephthalate (PCT) and polyester, glass-filled for durability. The open-frame design allows for improved airflow and inspection. Operating temperature range is -55°C to 125°C, suitable for industrial applications. Termination is solder type. This socket is marked as RoHS3 compliant, REACH unaffected, and has MSL 1 (unlimited), though these compliance claims are unverified.
24 positions arranged in a 2 x 12 configuration.
2.54mm (0.100") pitch between pins.
Through-hole mounting with solder termination.
Beryllium copper contacts with tin flash plating.
-55°C to 125°C.
