| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
185 pcs
|
185 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Type |

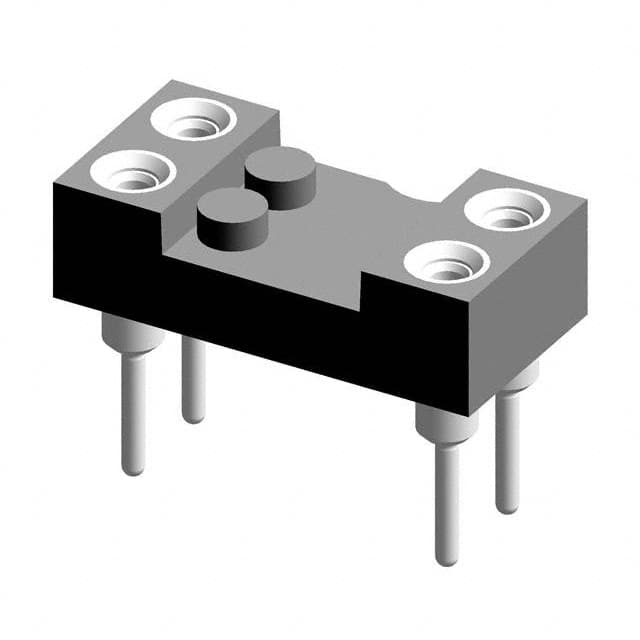

The Preci-Dip 110-87-304-41-001101 is a 4-position DIP socket designed for dual-in-line IC packages with 0.3" (7.62mm) row spacing and 2.54mm pin pitch. It uses a through hole solder termination for secure board attachment.
The socket features an open frame design for improved airflow and inspection access. Contacts are made of beryllium copper with a flash tin finish, ensuring reliable electrical connection. The housing is constructed from glass-filled PCT/Polyester, offering good thermal and mechanical stability.
Operating temperature range is -55°C to 125°C, suitable for industrial and commercial applications. The part is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited floor life) as per manufacturer declaration.
It has 4 positions arranged in a 2x2 grid with 0.3" (7.62mm) row spacing.
The pitch is 2.54mm (0.100").
Through hole with solder termination.
-55°C to 125°C.
Beryllium copper contacts with flash tin finish.
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, glass filled.
The manufacturer declares RoHS3 compliance, however this claim is unverified in available documentation.
