| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | 0921 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Termination | |
| Termination Style | |
| Type |

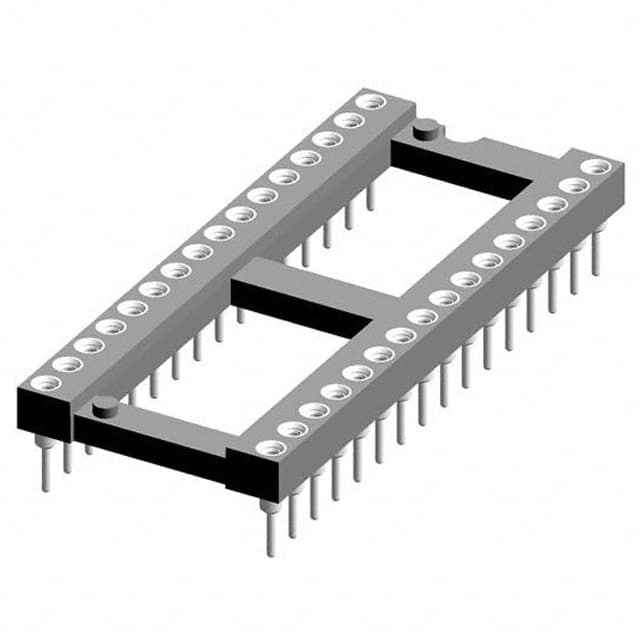

The Preci-Dip 110-83-632-41-001101 is a 32-position (2 x 16) open frame DIP IC socket designed for through-hole mounting. It features a standard 0.6" (15.24mm) row spacing and 2.54mm (0.100") pin pitch, making it compatible with common DIP packages.
The socket is constructed with a PCT (polycyclohexylenedimethylene terephthalate) and polyester glass-filled housing, providing robust insulation and dimensional stability. Contacts are made from beryllium copper with a tin finish of 29.5µin (0.75µm) thickness, ensuring reliable electrical connections and corrosion resistance.
This DIP socket supports an operating temperature range of -55°C to 125°C, suitable for a variety of industrial and commercial applications. The open frame design allows for airflow and inspection of solder joints. Termination is via through-hole solder, providing a secure mechanical and electrical bond to the PCB.
32 positions arranged in a 2 x 16 grid.
2.54mm (0.100").
0.6" (15.24mm).
Through hole with solder termination.
-55°C to 125°C.
Beryllium copper with tin plating of 29.5µin (0.75µm).
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled.
