| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Type |

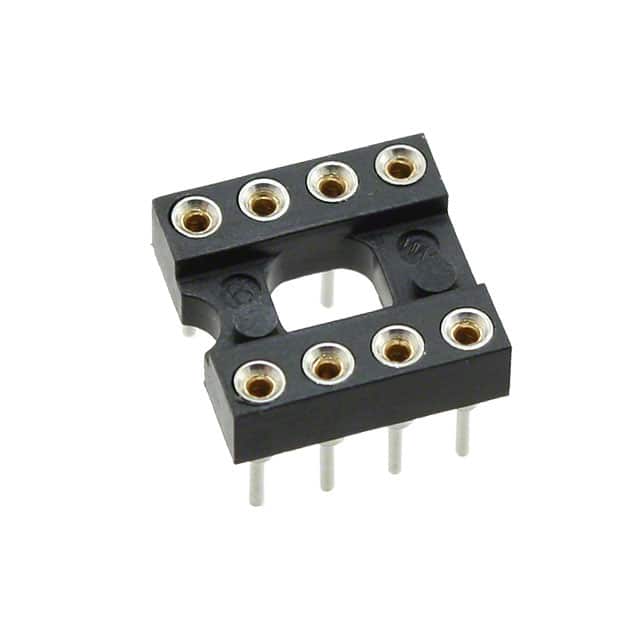

The Mill-Max 110-41-308-41-001000 is an 8-position DIP IC socket designed for through-hole mounting. It features a 0.3" (7.62mm) row spacing and a 2.54mm pitch, making it suitable for standard 8-pin DIP packages. The socket uses an open-frame construction, allowing for improved airflow and easier inspection of solder joints.
The contacts are made of beryllium copper with a tin finish (10.0µin thickness), providing reliable electrical connections and good corrosion resistance. The housing is constructed from PCT/polyester material, offering durability and stability across a wide operating temperature range of -55°C to 125°C.
This socket is ideal for prototyping, production, and applications where ICs need to be easily inserted and removed without soldering directly to the board. The through-hole design ensures a robust mechanical connection to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.23 | $1.23 |
| 10+ | $0.98 | $0.98 |
| 50+ | $0.93 | $0.93 |
| 100+ | $0.89 | $0.89 |
| 250+ | $0.83 | $0.83 |
| 500+ | $0.77 | $0.77 |
| 1,000+ | $0.77 | $0.77 |
| 2,500+ | $0.72 | $0.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions (2 x 4 grid).
2.54mm (0.100").
Through hole with solder termination.
-55°C to 125°C.
Beryllium copper with a tin finish (10.0µin).
