| Category | |
| Manufacturer Name | |
| Applications | |
| Control Voltage | |
| Current | |
| Current Monitor | |
| HV ON/OFF Voltage | |
| Height | |
| Input Impedance | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| Max Source Current | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Reference Voltage | |
| Ripple (@ Full Load, Max Eout with -F Option) | |
| Ripple (@ Full Load, Max Eout) | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Monitor | |
| Voltage Range | |
| Width |

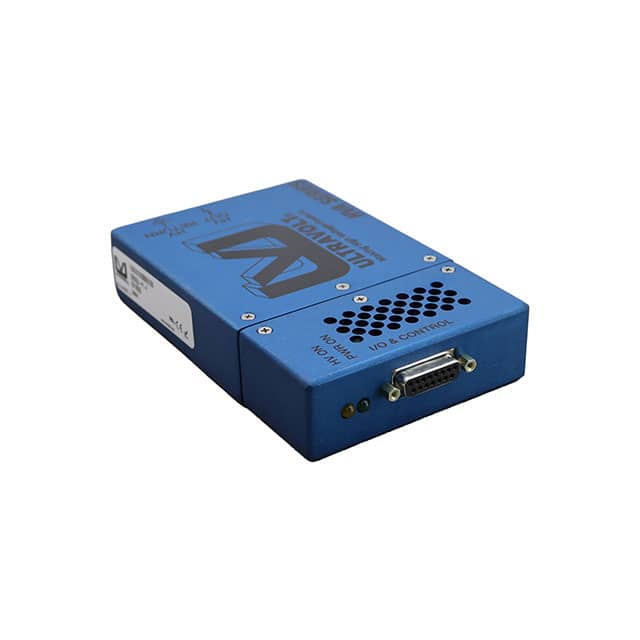

The Advanced Energy UltraVolt® 10HVA – 20HVA series provides high-resolution, high voltage DC output. This specific model, the 10HVA24-P1-F, operates with a 24VDC input and delivers 1W of power with a 100µA output current. It is designed for applications requiring precise high voltage amplification.
Key electrical specifications include excellent line and load regulation (<0.01%), low ripple (0.05%Vpp), and a temperature coefficient of ±50 ppm. The unit features a 0 to 10 VDC control input for voltage adjustment and a 0 to 0.8VDC disable/2.5 to 10VDC enable input.
Mechanically, this converter is enclosed and designed for chassis mounting, with dimensions of 152.4mm x 96.8mm x 31.8mm. The operating temperature range is from +10°C to +45°C.
Typical applications include drivers for electrohydrodynamics, electrostatic chucks, Pockels cells, laser modulation, and electrophoresis, as well as amplifiers for ion beam and electron beam devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output power is 1W.
The input voltage range is 24 VDC ± 10%.
The output current at full load is 100µA.
The operating temperature range is +10°C to +45°C.
It is designed for chassis mounting.
The dimensions are 152.4mm x 96.8mm x 31.8mm.
