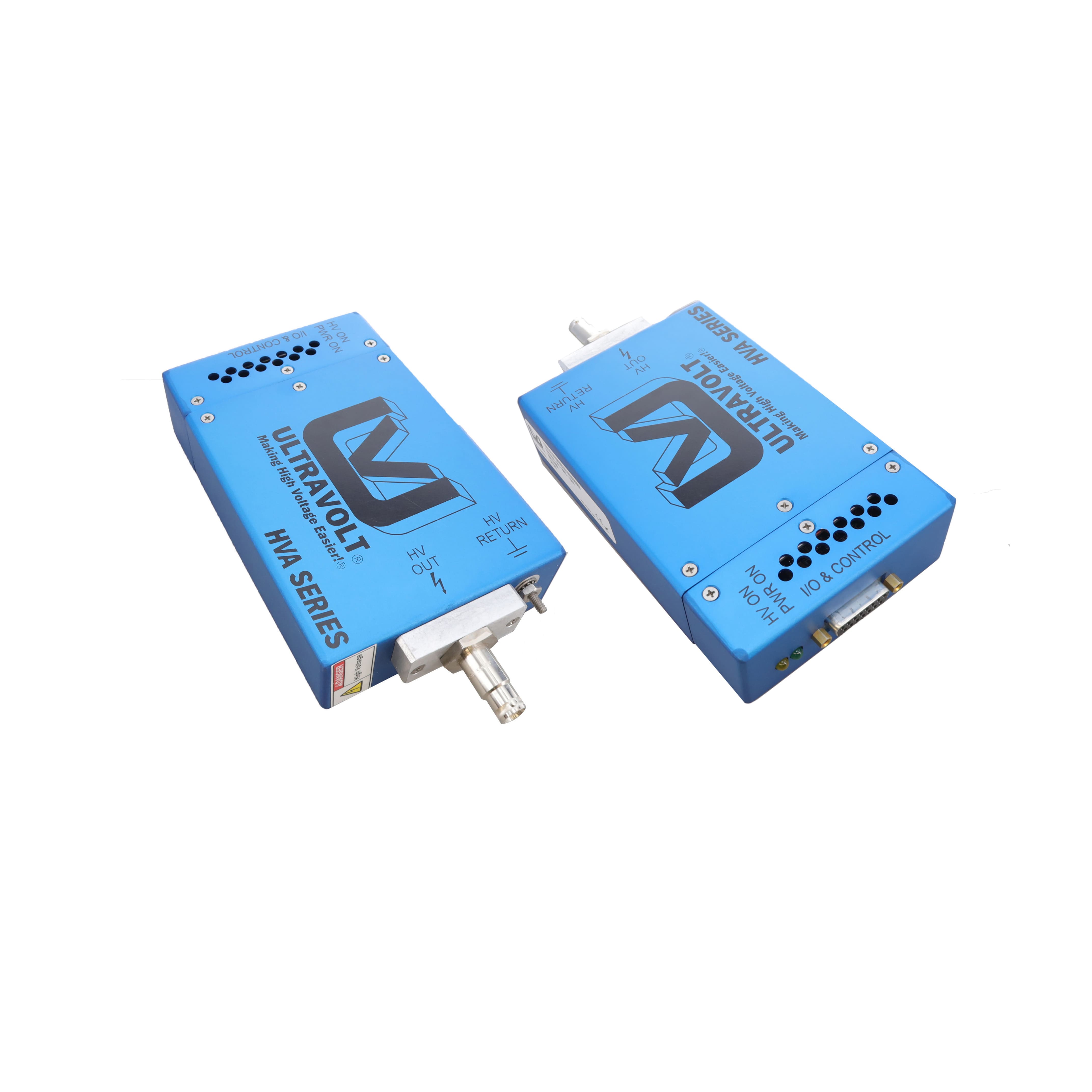

The Advanced Energy UltraVolt 10HVA – 20HVA series provides precision high voltage DC-to-DC power supplies, functioning as high voltage amplifiers (HVAs). This specific model, the 10HVA24-N1-BNC-10KV, delivers 1W of power with a 10kV output voltage and 100µA of output current.
Designed for applications requiring high voltage stability and precision, these modules feature excellent line and load regulation, with ripple as low as 0.05% Vpp. The unit operates with a nominal input voltage of 24 VDC ± 10% and has a wide operating temperature range of 10°C to 45°C.
This converter is suitable for chassis mounting and is enclosed for protection. Its capabilities include operating in DC, reversible, and amplifier modes, with the ability to both source and sink current linearly through 0V. The temperature coefficient is rated at 50 ppm.
Typical applications include drivers for electrohydrodynamics, electrostatic chucks, Pockels cells, laser and electro-optic modulation, and electrophoresis. It also serves as an amplifier for ion beam and electron beam devices, electrostatic deflection/focusing, flocking, coating, electrospinning, precipitation, and electrocoalescence.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 10 kV.
The output current is 100 µA.
The power rating is 1W.
The input voltage range is 24 VDC ± 10%.
The operating temperature range is 10°C to 45°C.
It is chassis mounted.
