The 10CTQ150-1 is a Schottky rectifier diode array from Vishay, designed for high-frequency switching applications. It consists of two Schottky diodes in a common cathode configuration, each rated for 5A average forward current (10A total per device). The device is rated for a maximum reverse voltage of 150V and operates over a junction temperature range of -55°C to 175°C.
Key electrical characteristics include a maximum forward voltage of 0.93V at 5A and 25°C, dropping to 0.73V at 125°C. Reverse leakage current is 0.05mA at 25°C and 7mA at 125°C. The device can handle non-repetitive surge currents up to 620A for 5µs sine wave and 115A for 10ms sine wave. Avalanche energy rating is 6.75mJ per leg. Typical junction capacitance is 200pF.

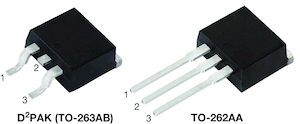

The device is housed in a through-hole TO-262-3 package (I2Pak equivalent) with a guard ring for enhanced ruggedness and long-term reliability. It is designed for industrial-level applications such as switching power supplies, DC-DC converters, freewheeling diodes, and reverse battery protection.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $1.07 | $1.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 150V.
The device is rated for 10A average forward current (5A per leg).
Maximum forward voltage is 0.93V at 5A and 25°C, and 0.73V at 125°C.
It is available in a through-hole TO-262-3 package (I2Pak equivalent).
The junction temperature range is -55°C to 175°C.
Non-repetitive surge current is 620A for a 5µs sine wave and 115A for a 10ms sine wave.
It is claimed as RoHS3 compliant, but this is unverified from the manufacturer.
