Mfr Part #:

10BQ030PBF

Mfr Name: Vishay

The Vishay Dale 10BQ030PBF is a Schottky diode designed for various electronic applications. It features a 30V reverse voltage and 1A forward current.

✓ Total Stock: 13 pcs

$ Price Range: $0.99

10BQ030PBF Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	13 pcs On Request	13 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

10BQ030PBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Vishay
Diode Type	Schottky
Forward Current	1A
Mounting Type	Surface Mount
Number of Pins	2
Reverse Voltage	30V

View Similar Products (0)

10BQ030PBF Description

Short technical summary and product information.

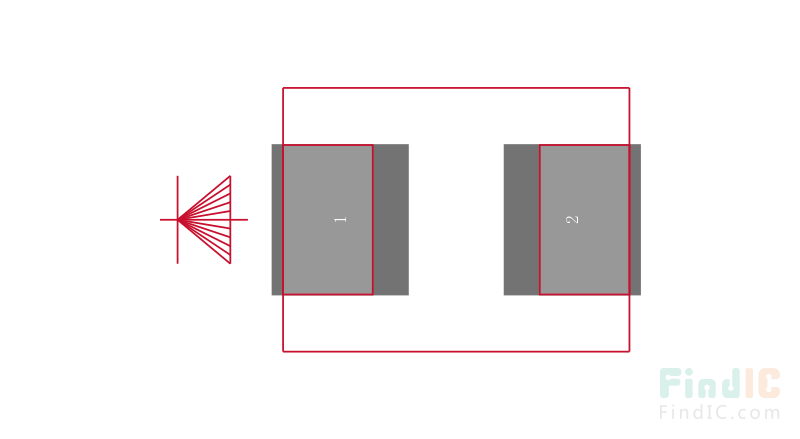

The Vishay Dale 10BQ030PBF is a Schottky diode with a part number 10BQ030PBF. It is manufactured by Vishay Dale and comes in an SMB package.

Key electrical characteristics include a maximum reverse voltage of 30V and a forward current of 1A. The diode is designed for surface mount applications.

This component is suitable for general-purpose rectification and switching applications where low forward voltage drop and fast switching speeds are required. Its SMB package makes it ideal for space-constrained designs.

Environmental compliance includes RoHS compliance and Lead-Free status. The Moisture Sensitivity Level (MSL) is 1, indicating unlimited shelf life under recommended storage conditions.

10BQ030PBF Quick Information

Product Type: Schottky Diode

Canonical Name: Vishay Dale 10BQ030PBF Schottky Diode

Subcategory: Schottky Diode

10BQ030PBF Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead Free

10BQ030PBF Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

10BQ030PBF Features

Schottky diode with 30V reverse voltage.
Surface mount SMB package for easy mounting.
Rated for 1A forward current.
RoHS compliant and lead-free.
Compatible with similar STPS1L30U diode.

10BQ030PBF Applications

Suitable for high-speed switching circuits.
Used in power supply rectification.
Ideal for RF and microwave applications.
Applicable in automotive electronic systems.

10BQ030PBF FAQs

7 frequently asked questions generated from this part’s specifications.

What is the reverse voltage of the 10BQ030PBF?

The reverse voltage is 30V.

What is the forward current of the 10BQ030PBF?

The forward current is 1A.

What type of diode is the 10BQ030PBF?

It is a Schottky diode.

What package is the 10BQ030PBF supplied in?

The 10BQ030PBF is supplied in an SMB package.

How is the 10BQ030PBF mounted?

The 10BQ030PBF is designed for surface mounting.

What is the RoHS status of the 10BQ030PBF?

The RoHS status is Compliant.

What is the Moisture Sensitivity Level (MSL) for the 10BQ030PBF?

The MSL is 1 Unlimited.
