Mfr Part #:

10AX016E3F29I2SG

Mfr Name: Altera

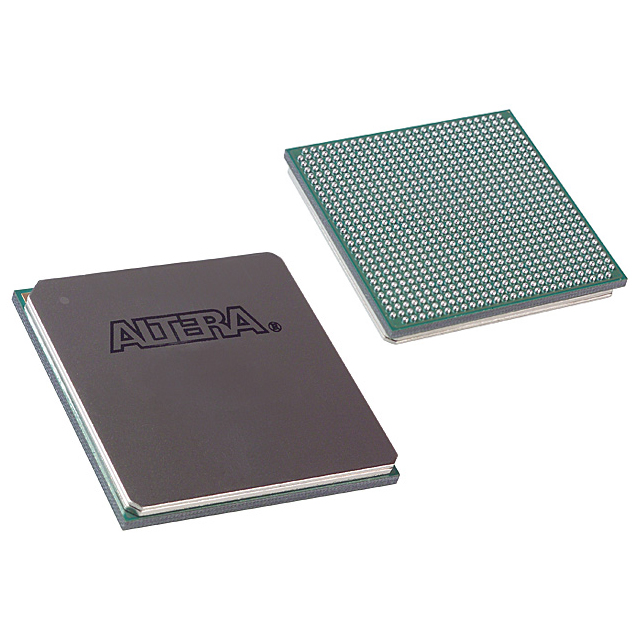

The Intel 10AX016E3F29I2SG is a high-performance FPGA from the Arria 10 GX series. It offers 160,000 logic elements and 288 I/Os, suitable for demanding applications.

✓ Total Stock: 90 pcs

$ Price Range: $0.99

10AX016E3F29I2SG Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	90 pcs On Request	90 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

10AX016E3F29I2SG Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Altera
Halogen Free	No
Lead Style	Ball
Mounting Type	Surface Mount
SVHC Present	Not Present
Supply Voltage	0.87V to 0.98V

View Similar Products (0)

10AX016E3F29I2SG Description

Short technical summary and product information.

The Intel 10AX016E3F29I2SG is a high-performance Field Programmable Gate Array (FPGA) belonging to Intel's Arria 10 GX series. Designed for modern electronics, this IC features a substantial 160,000 logic elements/cells and 61,510 Logic Array Blocks (LABs) or Configurable Logic Blocks (CLBs), providing extensive flexibility for complex digital designs.

With 288 I/Os, the 10AX016E3F29I2SG supports robust input and output operations, making it ideal for applications requiring high data throughput. It boasts a total RAM capacity of 10,086,400 bits for significant data storage and processing needs. The device operates within a low supply voltage range of 0.87V to 0.98V, ensuring energy efficiency.

Packaged in a 780FBGA format measuring 29 x 29 MM, this FPGA is designed for surface mount applications, facilitating easy integration into electronic systems. It is compliant with REACH and RoHS standards, meeting environmental regulations for global markets.

Development for the 10AX016E3F29I2SG is supported by Intel's Quartus Prime Software and Intel FPGA IP Libraries, offering advanced design tools and pre-verified IP cores.

10AX016E3F29I2SG Quick Information

Product Type: FPGA

Series: Arria 10 GX

Canonical Name: Intel Arria 10 GX FPGA

Subcategory: Field Programmable Gate Array

10AX016E3F29I2SG Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: No

10AX016E3F29I2SG Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

10AX016E3F29I2SG Features

High logic capacity with 160,000 cells.
Robust I/O capabilities with 288 pins.
Substantial RAM capacity of 10,086,400 bits.
Low operating voltage range of 0.87V to 0.98V.
Surface mountable 780FBGA package.

10AX016E3F29I2SG Applications

Ideal for telecommunications infrastructure.
Suitable for data center acceleration.
Used in industrial automation systems.
Applicable for medical imaging devices.
Supports automotive ADAS applications.

10AX016E3F29I2SG FAQs

5 frequently asked questions generated from this part’s specifications.

What is the logic capacity of the 10AX016E3F29I2SG FPGA?

The 10AX016E3F29I2SG FPGA has 160,000 logic elements/cells and 61,510 Logic Array Blocks (LABs) or Configurable Logic Blocks (CLBs).

How many I/O pins does the 10AX016E3F29I2SG have?

The 10AX016E3F29I2SG features 288 I/Os.

What is the total RAM capacity of the 10AX016E3F29I2SG?

The total RAM capacity is 10,086,400 bits.

What is the operating voltage range for the 10AX016E3F29I2SG?

The device operates within a supply voltage range of 0.87V to 0.98V.

What type of package is the 10AX016E3F29I2SG in?

The 10AX016E3F29I2SG is available in a 780FBGA package, measuring 29 x 29 MM, and is designed for surface mount applications.
