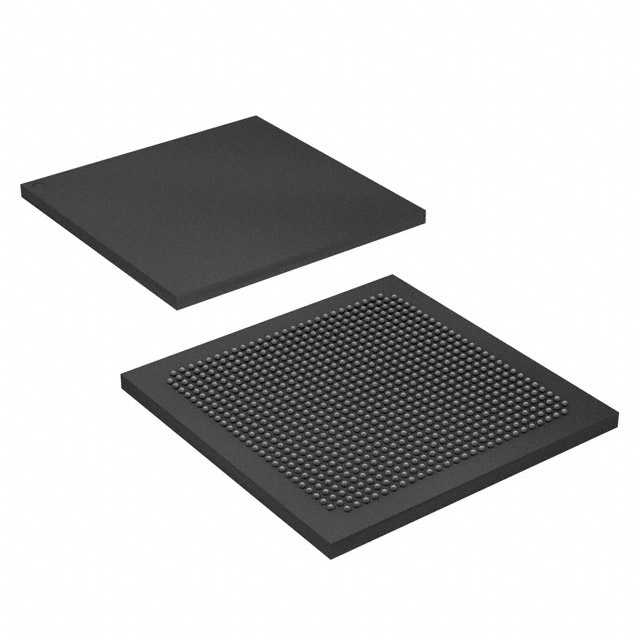

10AS016E4F29I3LG Intel 10AS016E4F29I3LG is a System-on-Chip (SoC) combining a dual ARM Cortex-A9 MPCore processor with an FPGA fabric containing 160K logic elements. It operates at 1.5GHz, has 256KB RAM, and comes in a 780-FBGA package.
Mfr Part #:

10AS016E4F29I3LG

Available from 1 distributors
Mfr Name: Intel
Intel
Intel 10AS016E4F29I3LG is a System-on-Chip (SoC) combining a dual ARM Cortex-A9 MPCore processor with an FPGA fabric containing 160K logic elements. It operates at 1.5GHz, has 256KB RAM, and comes in a 780-FBGA package.
✓ Total Stock: 9,500 pcs

10AS016E4F29I3LG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
9,500 pcs
On Request
9500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

10AS016E4F29I3LG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Connectivity
Core Processor
Operating Temperature
Peripherals
Primary Attributes
RAM Size
Speed
Supplier Device Package
View Similar Products (0)

10AS016E4F29I3LG Description

Short technical summary and product information.

The Intel 10AS016E4F29I3LG is an Arria 10 SX SoC FPGA, integrating a dual ARM Cortex-A9 MPCore processor with an FPGA fabric of 160K logic elements. The processor runs at 1.5 GHz and includes 256 KB of on-chip RAM. The device supports a wide range of connectivity interfaces: EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG. Peripherals include DMA, POR, and WDT.



The FPGA fabric provides 160K logic elements, enabling flexible hardware acceleration and custom logic implementation. The device is designed for applications requiring both high-performance processing and programmable logic, such as industrial automation, communications, and embedded computing.



The package is a 780-FBGA, FC (29x29 mm) with an operating temperature range of -40°C to 100°C (junction). The part is RoHS3 compliant and has an MSL rating of 1 (unlimited). It is part of the Intel Arria 10 SX family, known for low power consumption and high integration.

10AS016E4F29I3LG Quick Information

Product Type: SoC (FPGA + MCU)
Series: SX
Canonical Name: Intel Arria 10 SX SoC FPGA (10AS016E4F29I3LG)
Subcategory: FPGA SoC

10AS016E4F29I3LG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

10AS016E4F29I3LG Features

  • Dual ARM Cortex-A9 MPCore at 1.5GHz.
  • FPGA fabric with 160K logic elements.
  • 256KB on-chip RAM for processor.
  • 780-FBGA package with 29x29mm footprint.
  • RoHS3 compliant and MSL 1 unlimited.

10AS016E4F29I3LG Applications

  • Embedded computing with CPU and FPGA integration.
  • Real-time control with DMA and watchdog timer.
  • High-speed data processing via Ethernet and USB OTG.
  • Industrial automation and motor control systems.
  • Communications and networking equipment.

10AS016E4F29I3LG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the 10AS016E4F29I3LG?

-40°C to 100°C (junction).

What is the package type of the Intel 10AS016E4F29I3LG?

780-FBGA, FC (29x29 mm).

Is the 10AS016E4F29I3LG RoHS compliant?

RoHS3 compliant (unverified).

What core processor does the 10AS016E4F29I3LG use?

Dual ARM Cortex-A9 MPCore with CoreSight.

What is the processor speed of the 10AS016E4F29I3LG?

1.5 GHz.

How much RAM is on-chip?

256 KB.

What connectivity interfaces are available?

EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG.
