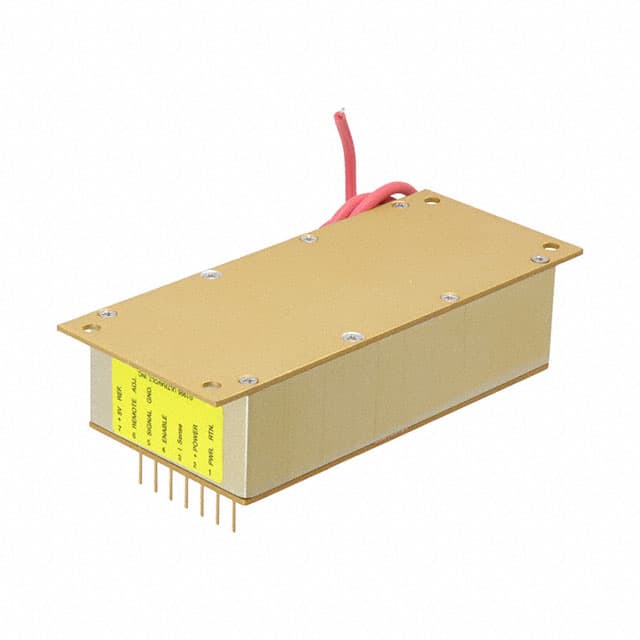

The Advanced Energy UltraVolt 10A series provides regulated DC-to-DC conversion for high voltage power applications. This specific model, the 10A24-P30-M-C, delivers up to 30W of output power with a maximum output voltage of 10kV DC. It operates from a nominal 24VDC input, with an input voltage range of 23 to 30VDC.
Key electrical specifications include a maximum output current of 3mA and an output ripple as low as < 3.4 Vpp with the -F-M option. Stability is rated at 0.01% (100 ppm) after warmup, with line and static load regulation also at 0.01%. The temperature coefficient is available down to 25 ppm/°C.
Designed for ease of installation, this converter features a chassis mount. The operating temperature range is -40°C to 65°C (case temperature). It is recognized by UL/cUL and carries the CE mark, complying with IEC-60950-1 standards. Typical applications include DC bias supplies, high-potential testing, and use with PMT/APD detectors.
This converter offers simplified integration with an analog control interface. It is suitable for general-purpose high voltage power needs across various industries.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output voltage is 10,000 VDC.
The nominal input voltage is 24 VDC.
The maximum output power is 30 W.
The operating temperature range is -40°C to 65°C case temperature.
It is designed for chassis mounting.
It features an analog control interface.
