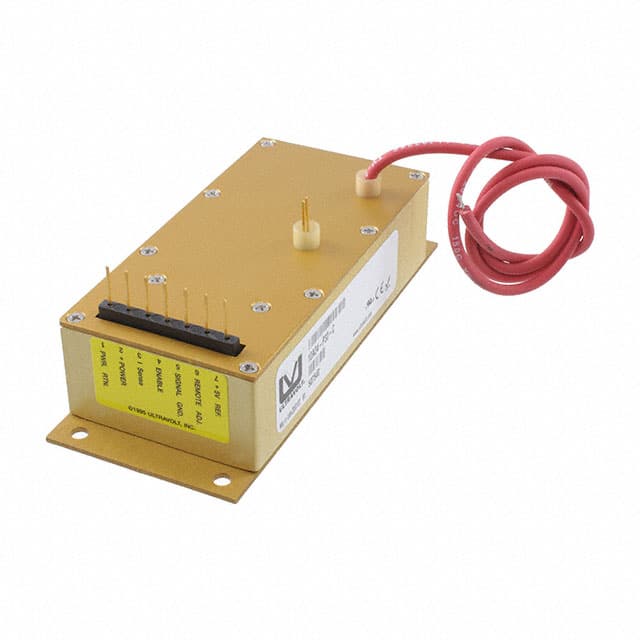

The Advanced Energy UltraVolt 10A series offers regulated DC-to-DC converters designed for general-purpose high voltage power applications. The 10A24-P30-C model delivers a precisely regulated output voltage ranging from 0 to 10,000 VDC with a maximum output power of 30W. It operates from a nominal 24 VDC input, with an input voltage range of 23 to 30 VDC.
Key electrical specifications include a maximum output current of 3mA and output ripple as low as 3 Vpp in standard configuration. Stability and regulation are excellent, with line and load regulation at 0.01% (100 ppm). The operating temperature range is -40 to 65°C case temperature.
This converter is designed for ease of installation with chassis-mount options. It is UL/cUL recognized and CE marked for LVD and RoHS compliance, meeting IEC-60950-1 standards. Typical applications include DC to high voltage DC bias supplies, high-potential testing, PMT/APD detectors, and mass spectrometers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum regulated DC high voltage output is 10,000 VDC for positive polarity models.
The maximum output power is 30W.
The nominal input voltage is 24 VDC.
The operating temperature range is -40 to 65°C case temperature.
This converter offers PCB or chassis-mount options.
