| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Automotive Grade | |
| Bearing Type | |
| Fan Type | |
| Features | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Rated Current | |
| SVHC Present | |
| Static Pressure | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Voltage | |
| Weight | |
| Width |

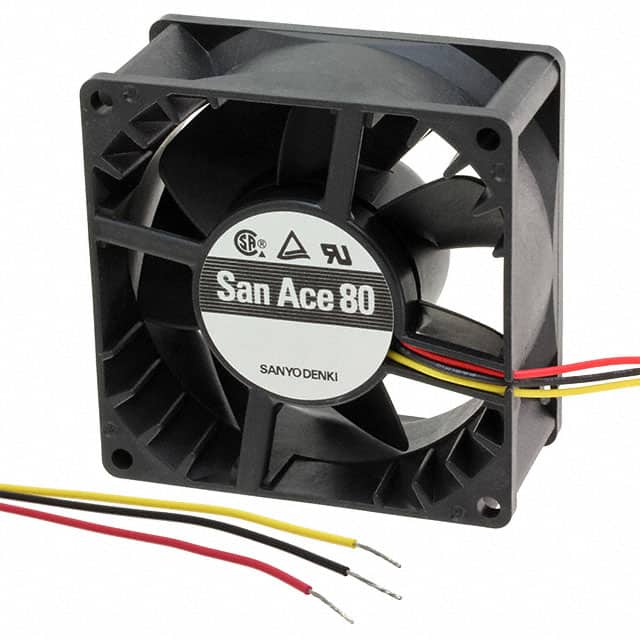

The Sanyo Denki 109R0824S401 is a 24V DC tubeaxial fan from the San Ace 80 9R series. It features an 80x80x25mm frame and delivers 42.4 CFM (1.2 m³/min) of airflow with 48.0 Pa static pressure at 3400 RPM. The fan uses a ball bearing system and includes locked rotor protection and a tachometer output for speed monitoring.
Electrically, the fan operates from 12 to 27.6 VDC, draws 0.1 A, and consumes 2.4 W. It is rated for continuous operation from -20 to 70 °C with an expected life of 60000 hours at 60 °C (L10). The frame is molded from UL 94V-0 rated plastic and the impeller from UL 94V-1 rated plastic.
The fan terminates in 3 wire leads (red, black, sensor yellow) and is approved by CSA, TUV, and UL. It includes reverse polarity protection and dielectric strength of 500 VAC for 1 minute.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.60 | $19.60 |
| 10+ | $16.87 | $16.87 |
| 25+ | $16.40 | $16.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fan operates from 12 to 27.6 VDC.
The fan is rated for -20 to 70 °C.
RoHS3 compliance is claimed but unverified.
60000 hours at 60 °C (L10 life).
Yes, it has a speed sensor (tach) output on the yellow wire.
34.0 dB(A) at 1 meter.
CSA, TUV, and UL approved.
